BlackSnow EDC - MK2 Cargo Frameset
BlackSnow EDC - MK2 Cargo Frameset
Shipping:
Same-day dispatch before 3 PM (except bikes)
Click & Collect
You can pick up 9am–5pm weekdays and 10am–4pm Saturdays from our Sydney shop at 278–282 Mitchell Rd, Alexandria. Most orders are ready within the hour.
Accepted Payment Methods:
About this product

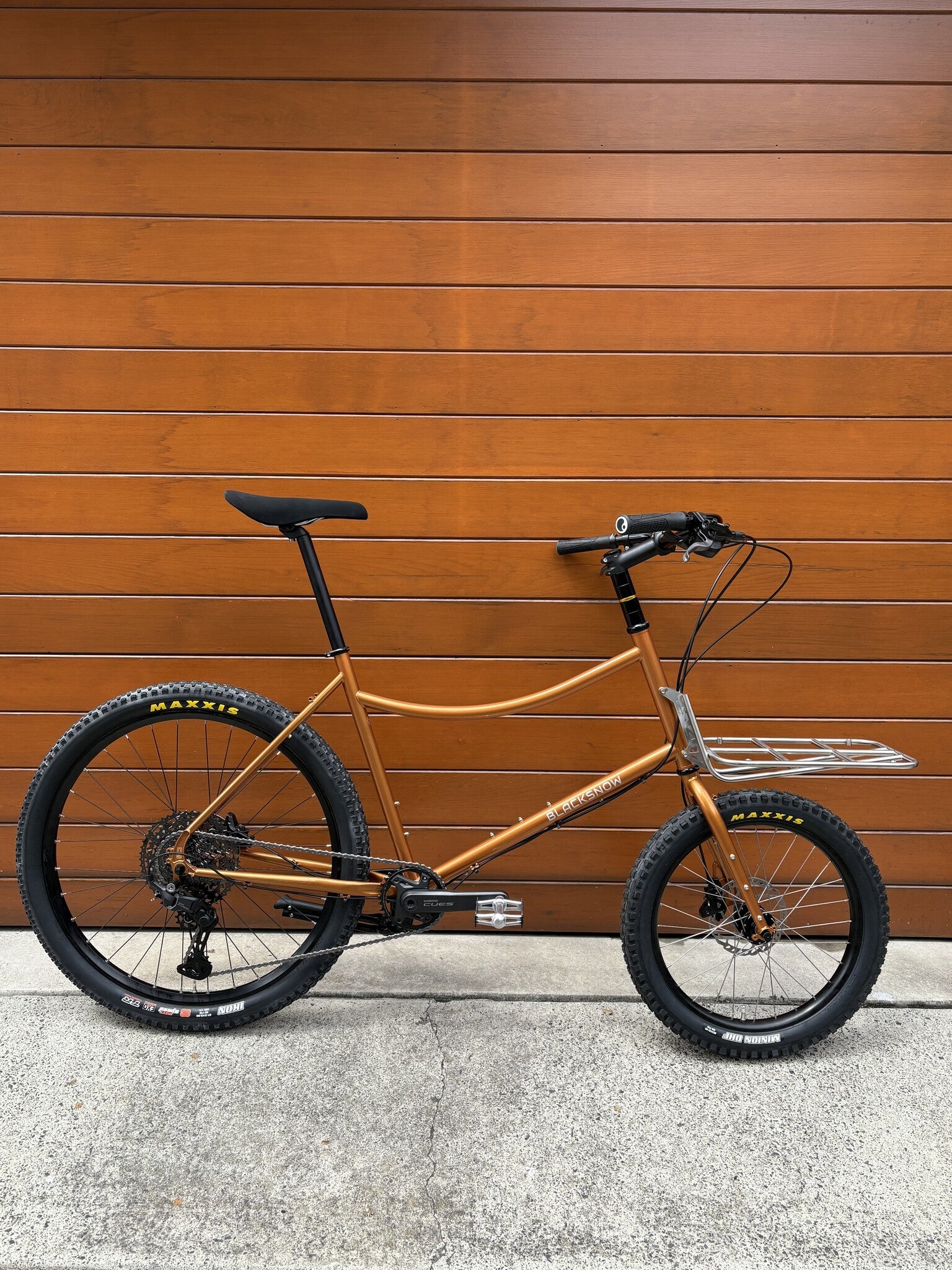

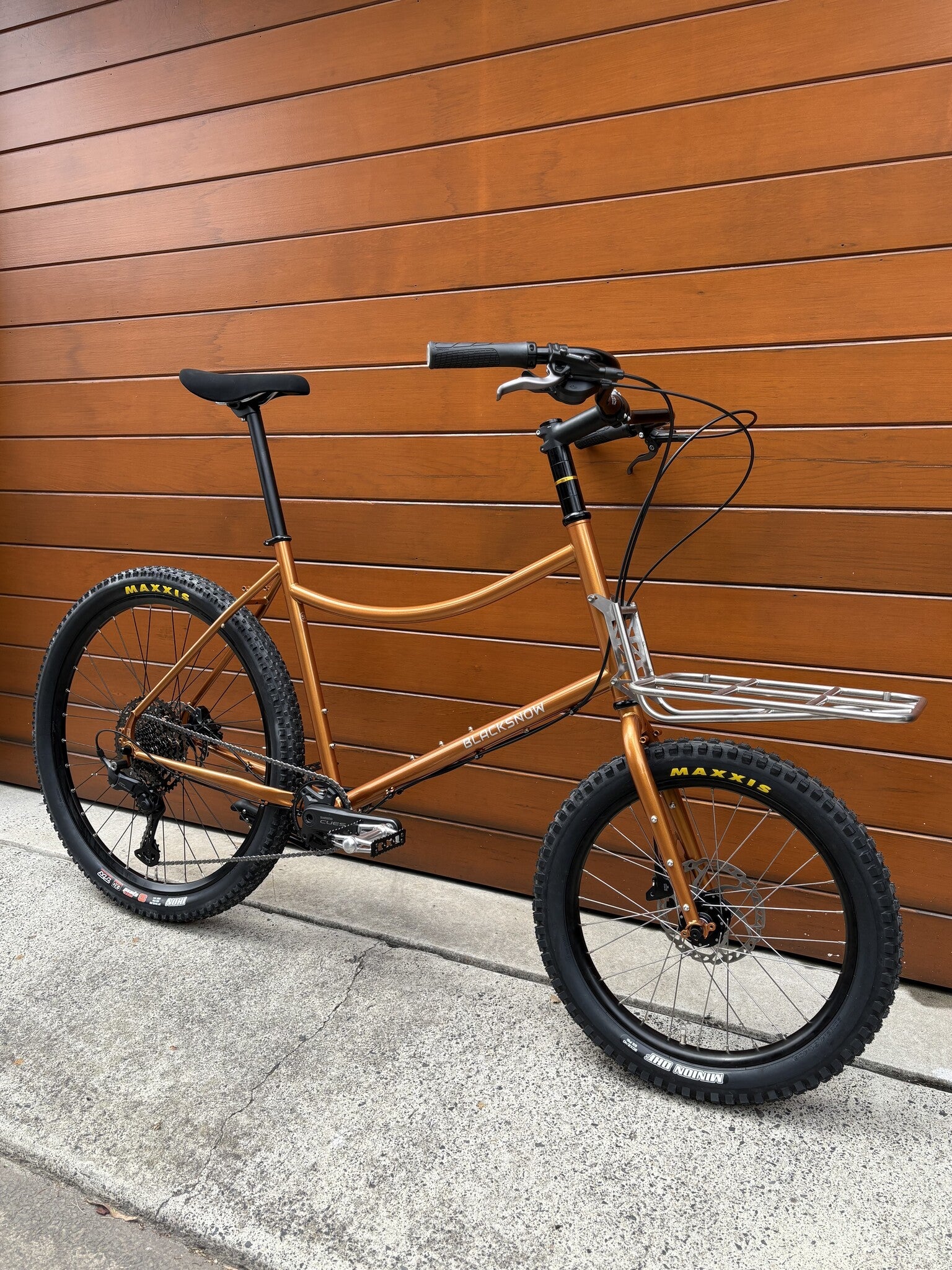

The BlackSnow EDC Mk2 is a capable small form factor cargo bike that can double as a daily ride. Or perhaps the otherway, its a fun daily ride bike that can double for occasional cargo and hauling duties !

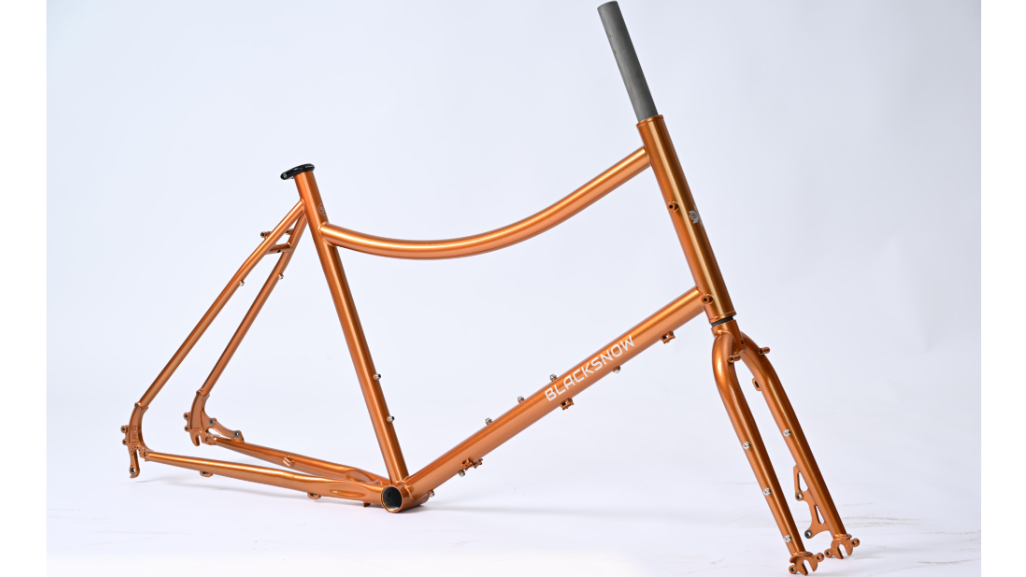

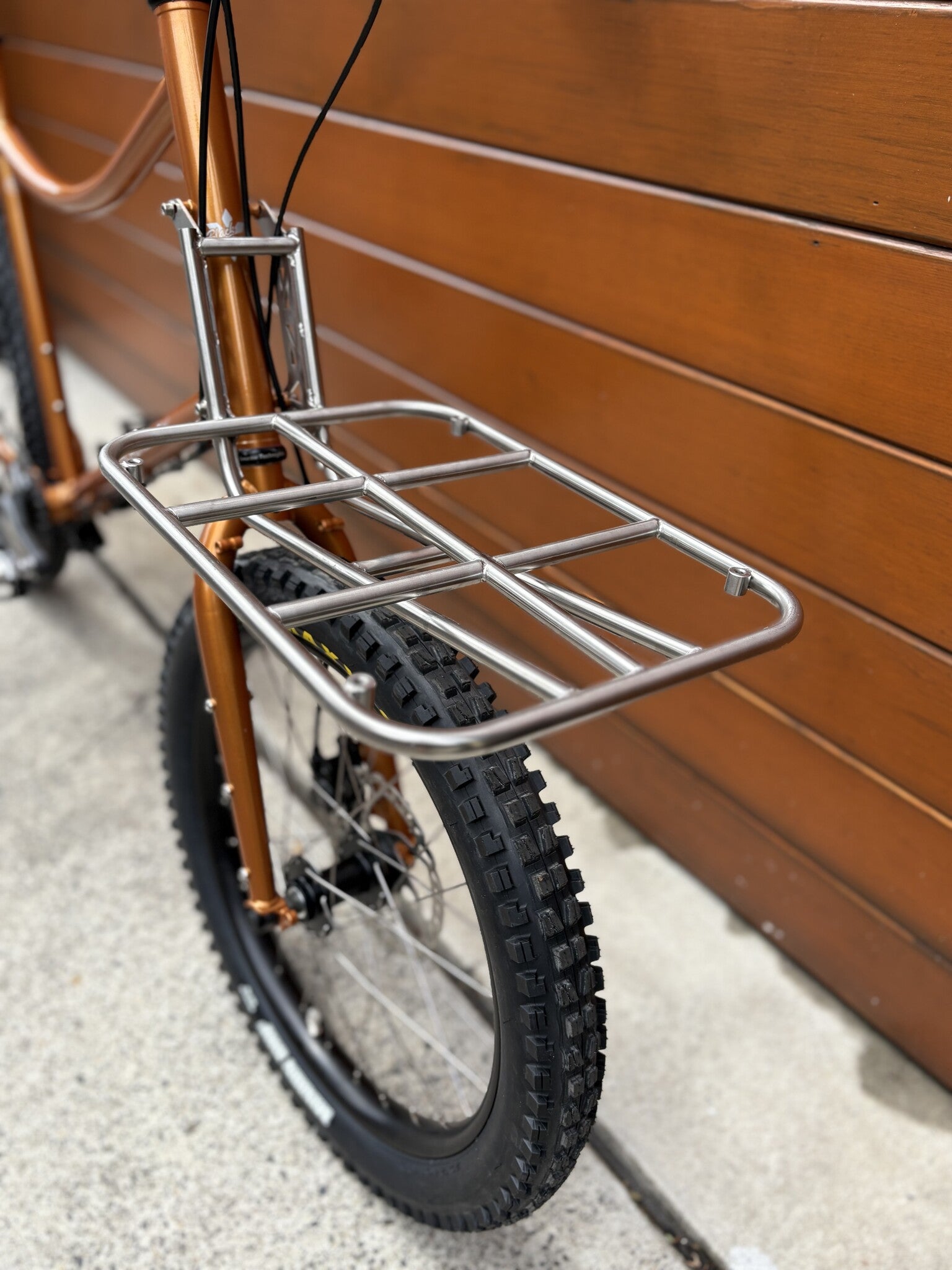

Frameset includes Frame + Fork + Stainless steel front rack.
Does not include headset or seatpost collar.
We can build a complete bike to your spec or to simple House Spec

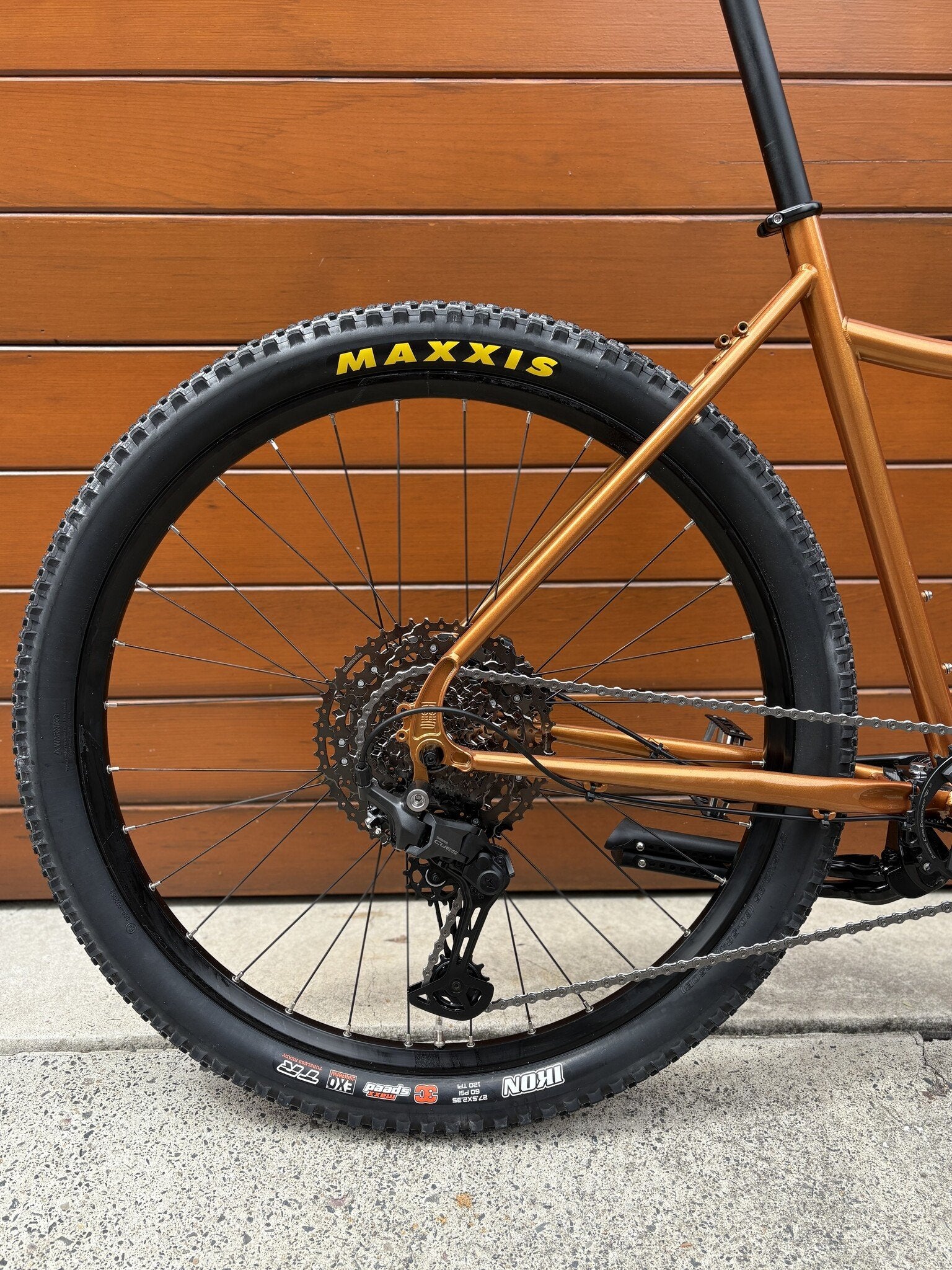

Frame is built for a 20" front, 27.5 rear. Clearance for up to 2.4" tyres
QR front 100x9 and 135x10 rear
27.2 seatpost
68mm BSA threaded bottom bracket.
Simple 1 1/8 headset: EC34 - 28.6 / EC34 - 30
IS brake mounts front and rear
| Size | Medium (M) |
|---|---|
| Seat Tube (C-T) | 500mm |
| Effective Top Tube | 605mm |
| Chain Stay* | 445mm (±7) |
| Head Tube | 280mm |
| Head Tube Angle | 69.5° |
| Seat Tube Angle | 71.5° |
| BB Drop | 55mm |
| Standover** | 661mm |
| Reach | 428mm |
| Stack | 529mm |
| Fork Rake | 25mm |
| Fork Top Tube Length | 450mm |
| Fork Axle to Crown | 320mm |
| Wheelbase | 1107mm |
