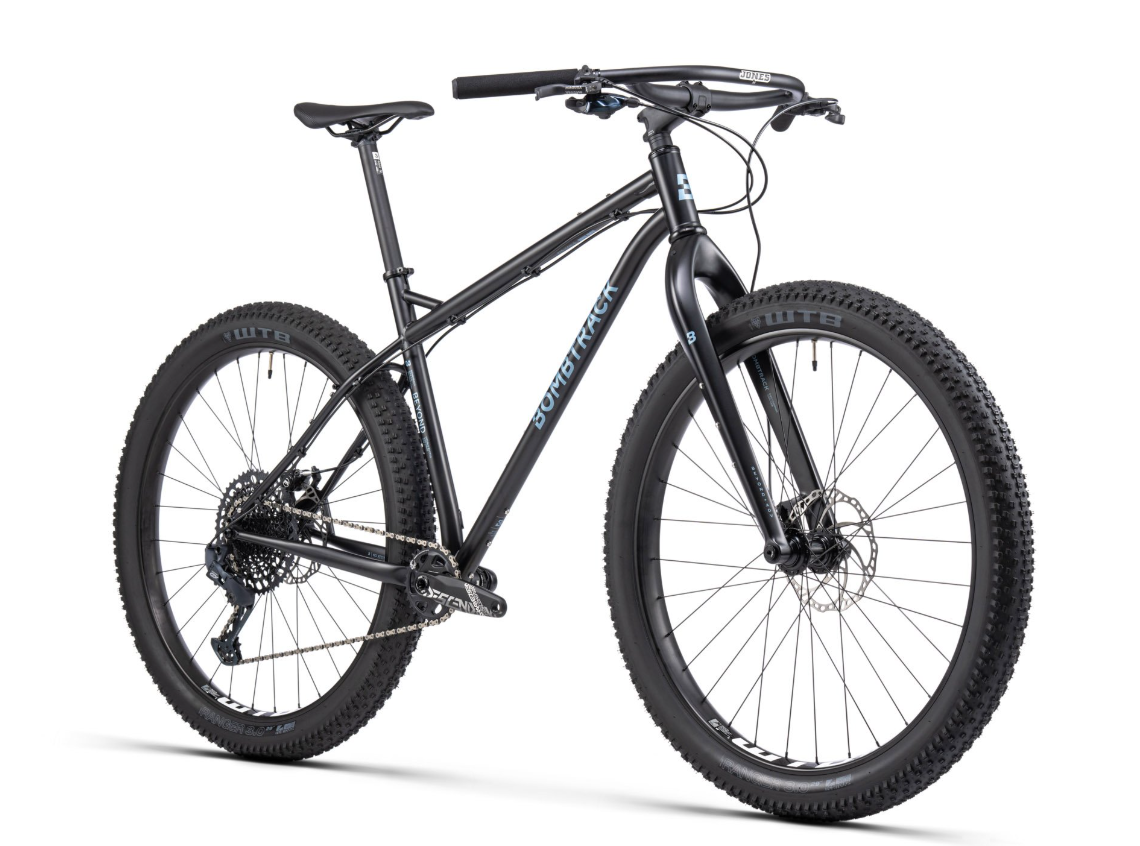

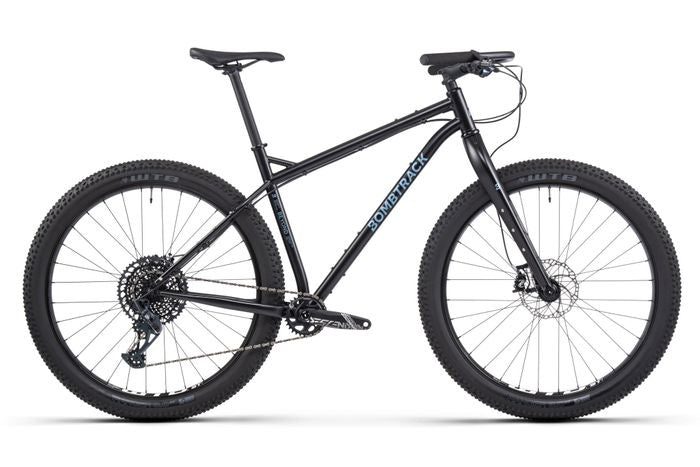

Bombtrack Beyond+ ADV
Bombtrack Beyond+ ADV
Shipping:
Same-day dispatch before 3 PM (except bikes)
Click & Collect
You can pick up 9am–5pm weekdays and 10am–4pm Saturdays from our Sydney shop at 278–282 Mitchell Rd, Alexandria. Most orders are ready within the hour.
Accepted Payment Methods:
About this product
[SPLIT]
[SPLIT]
- Double butted suspension corrected crmo frame with rack and fender mounts and BSA bottom bracket.
- Toptube bag direct mounts, triple cage mounts on both seatstays, underneath and on top of the downtube.
- Stealth dropper post routing.
- Bombtrack BPC full carbon fork with triple cage mounts on both legs.
- Sram GX Eagle 12-speed drivetrain with 10 – 52 T cassette, Descendant Boost crank, Sram Dub bottom bracket and 30 T direct mount chainring.
- Magura Trail Sport hydraulic disc brake with four front pistons and two at the rear maximising power and weight.
- Tubeless ready WTB ST i45 front rim, WTB ST i40 rear rim with tubeless ready WTB Ranger, Tough / Fast rolling 3.0” tires.
[SPLIT]
|
Bike Size |
S |
M |
L |
XL |
|
Wheel size |
29'' |
29'' |
29'' |
29'' |
|
Seat Tube Length |
406 |
457 |
508 |
559 |
|
Horizontal TT length |
573 |
598 |
622 |
650 |
|
Seat Angle |
72.0° |
72.0° |
72.0° |
72.0° |
|
Seat Angle effective |
74.0° |
73.7° |
73.7° |
73.7° |
|
Head Angle |
68.5° |
68.5° |
68.5° |
68.5° |
|
Headtube Length |
100 |
110 |
125 |
135 |
|
BB Drop |
70 |
70 |
70 |
70 |
|
Chainstay Length |
450 |
450 |
450 |
450 |
|
Fork Offset |
51 |
51 |
51 |
51 |
|
Trail |
97 |
97 |
97 |
97 |
|
Wheelbase Length |
1111 |
1135 |
1160 |
1188 |
|
Standover |
775 |
802 |
833 |
860 |
|
Reach |
395 |
415 |
434 |
459 |
|
Stack |
621 |
630 |
644 |
653 |
|
Front Center |
670 |
694 |
718 |
747 |
|
Axle to Crown |
500 |
500 |
500 |
500 |
|
Minimum rider height * |
1600 |
1700 |
1790 |
1880 |
|
Maximum rider height * |
1710 |
1810 |
1900 |
1990 |
[SPLIT]
Duration of the warranty
Frame: 3 years
Fork: 2 years
Parts, Paint, Decals: 1 year
This warranty is valid to the original purchaser only and not transferable to other persons! Proof of purchase is required to validate protection under this limited warranty.
This warranty does not cover:
1. Normal wear and tear (as with bicycles, riding will cause certain deterioration)
2. Improper assembly
3. Inappropriate follow-up maintenance
4. Installation of components, parts, or accessories not originally intended for or compatible with the bicycle as sold
5. Damage or failure caused by accident, misuse, abuse, or neglect
6. Labour charges for part replacement or changeover
