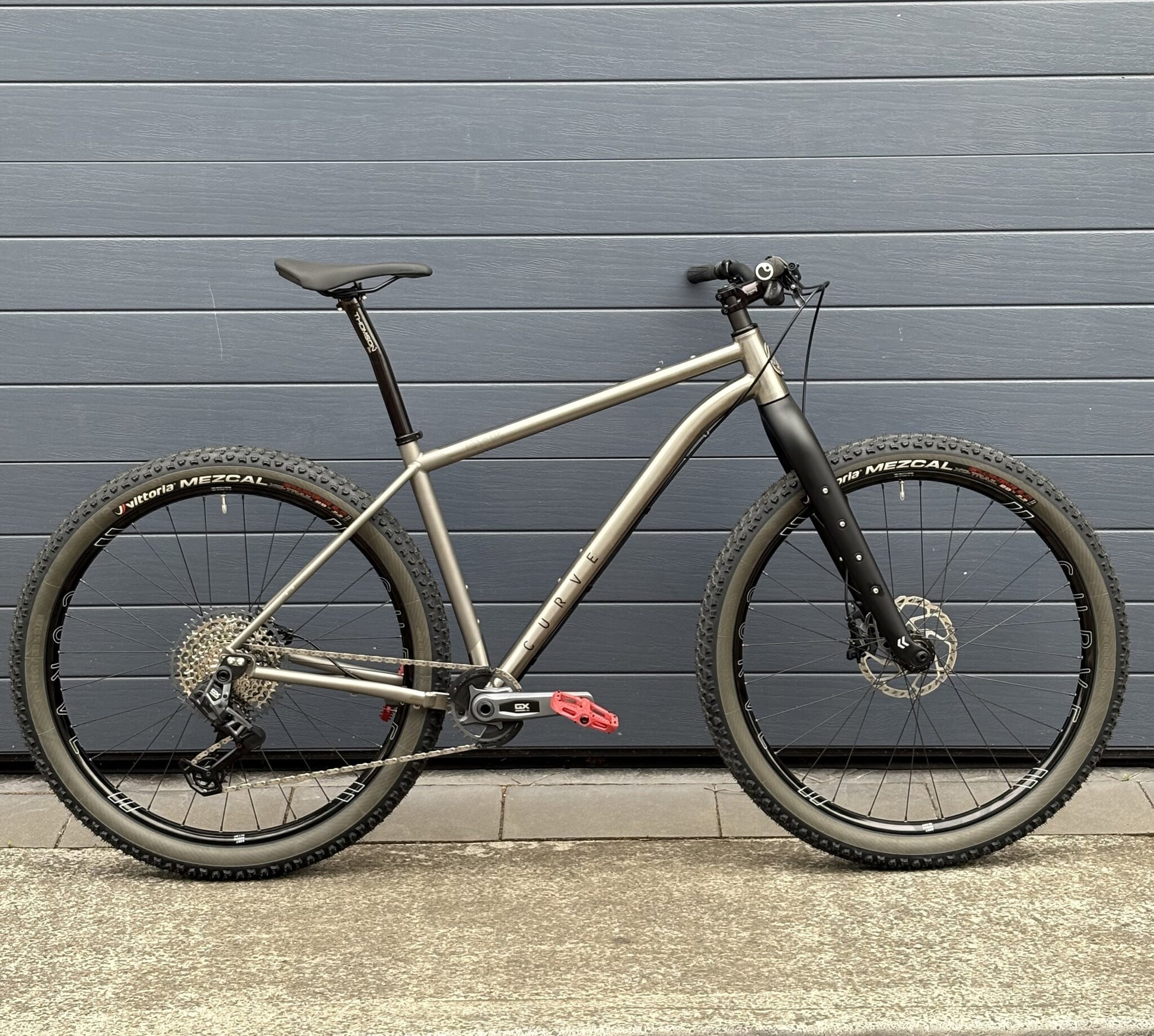

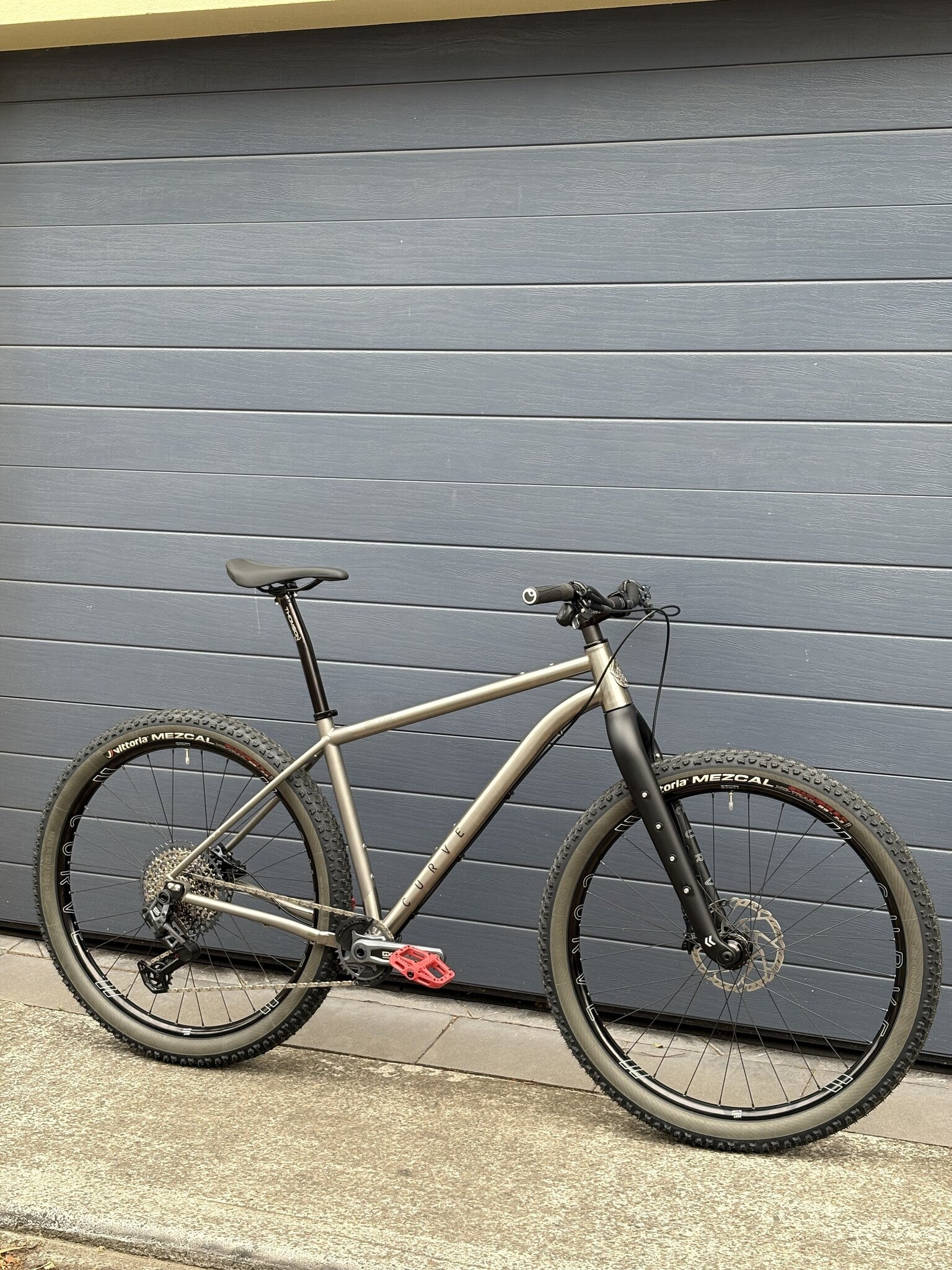

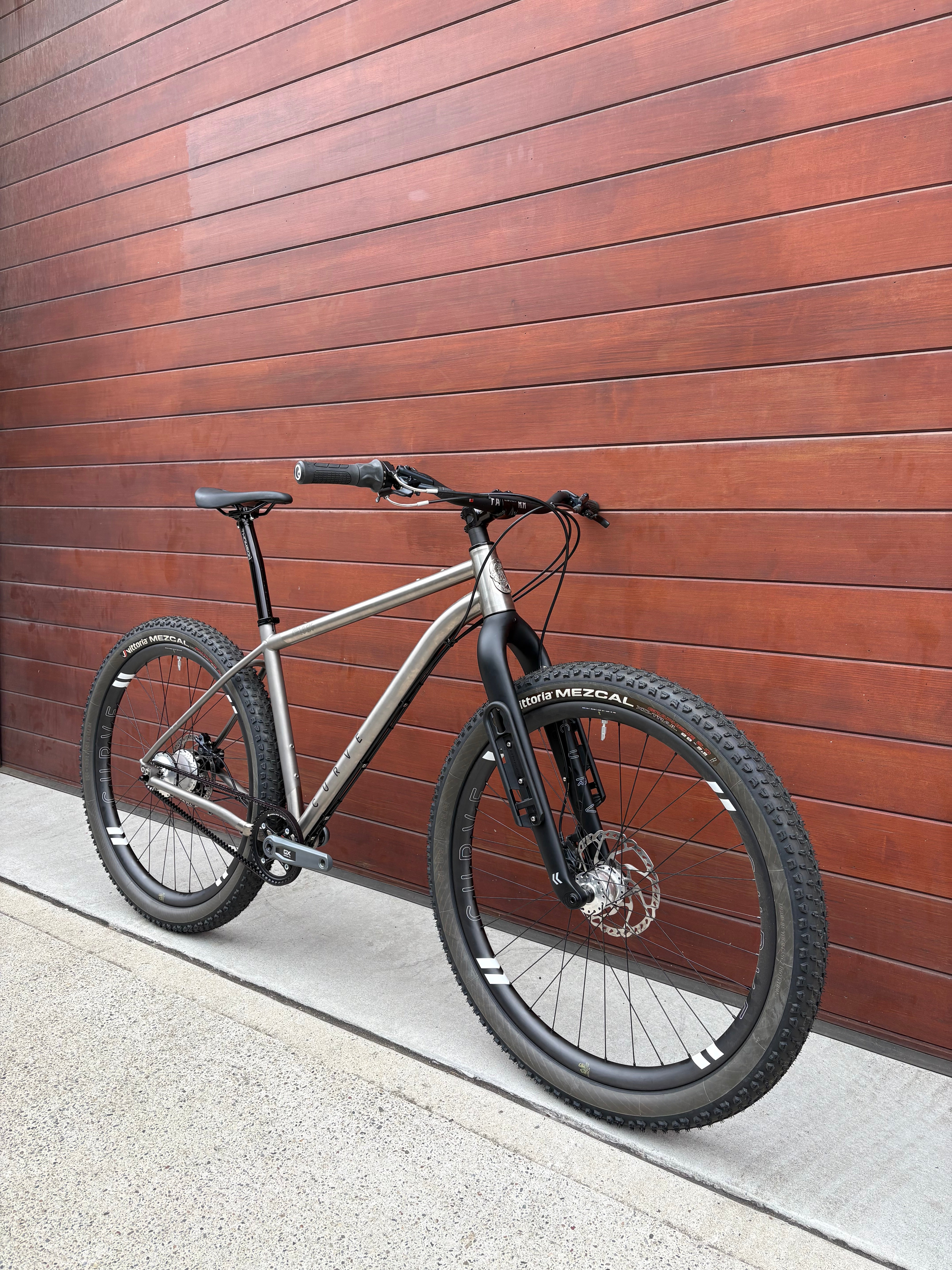

Curve Uprock V2 House Build (Large)

The new Uprock v2 from Curve combines pretty much every wishlist item we could want for a modern mountain bike build.

Runs 29" wheels with clearance for 2.6" tyres

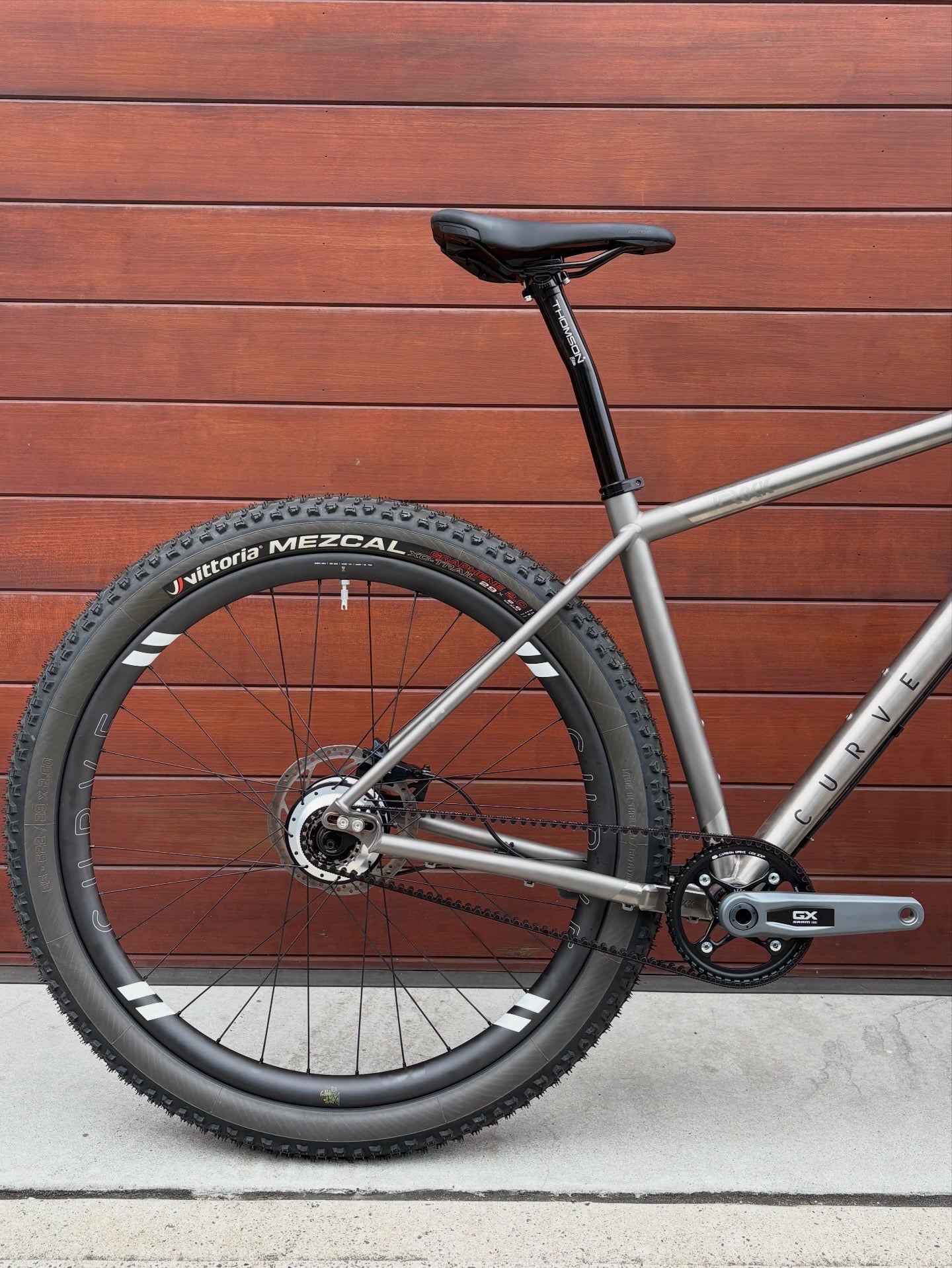

Sliding dropouts allow single speed, split frame allows belt drive and replaceable dropouts allow pretty much any wheel standard or gear option you can imagine. 148mm boost, 142mm non boost or 135mm QR

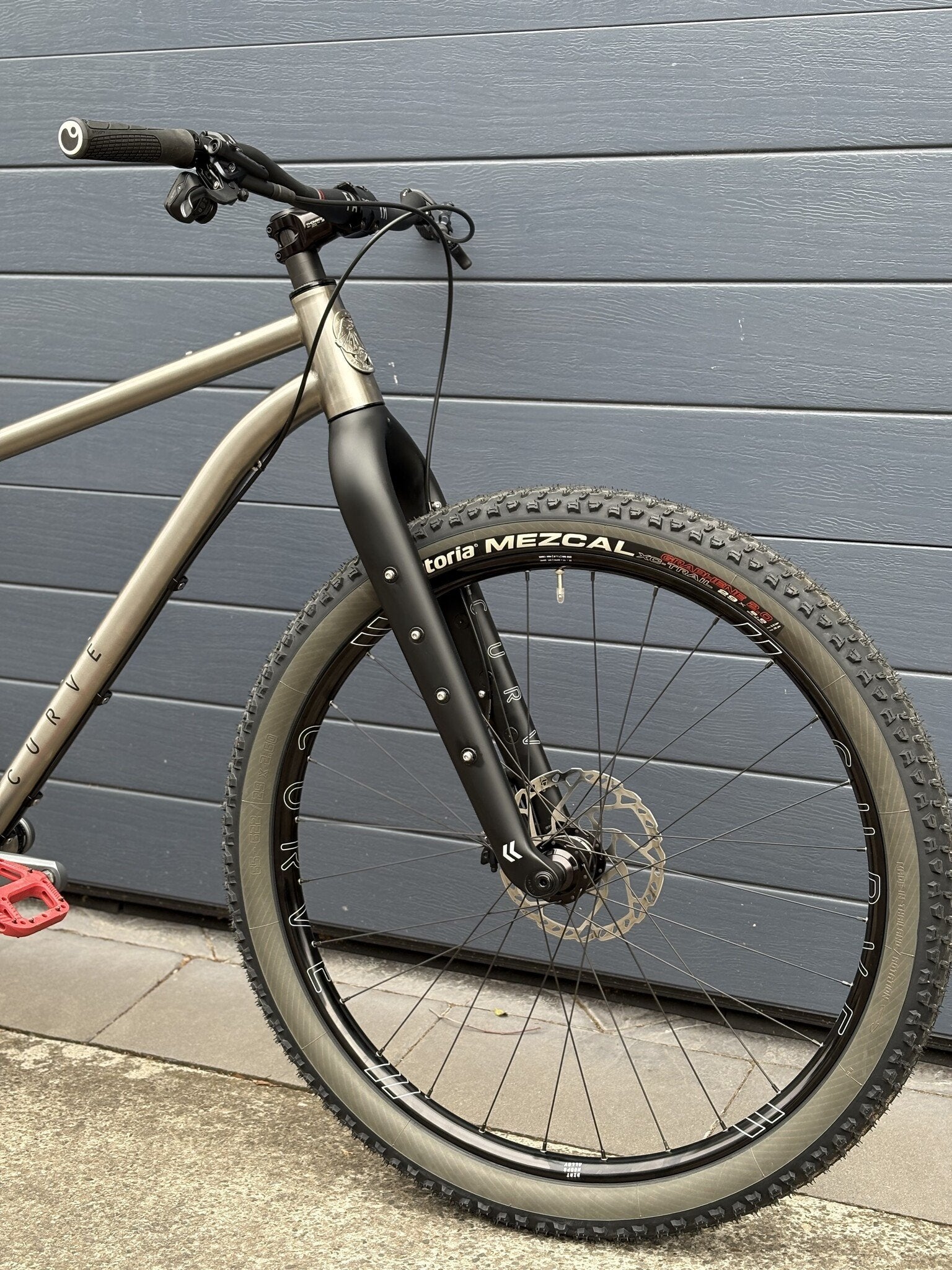

Can run a 120mm suspension fork or the Seek 500 Carbon rigid fork, with bikepacking mounts and eyelets for up to 8kgs per side.

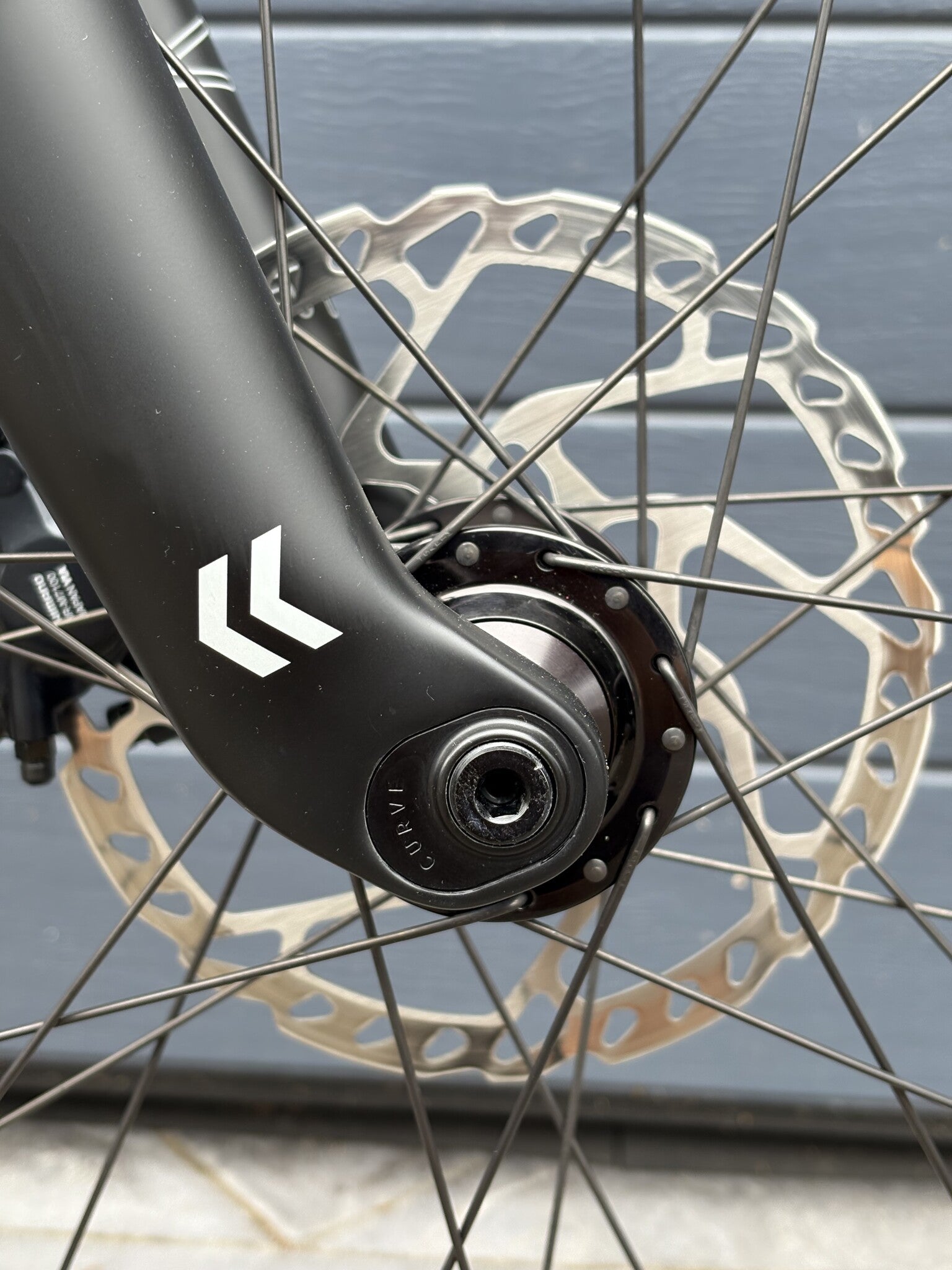

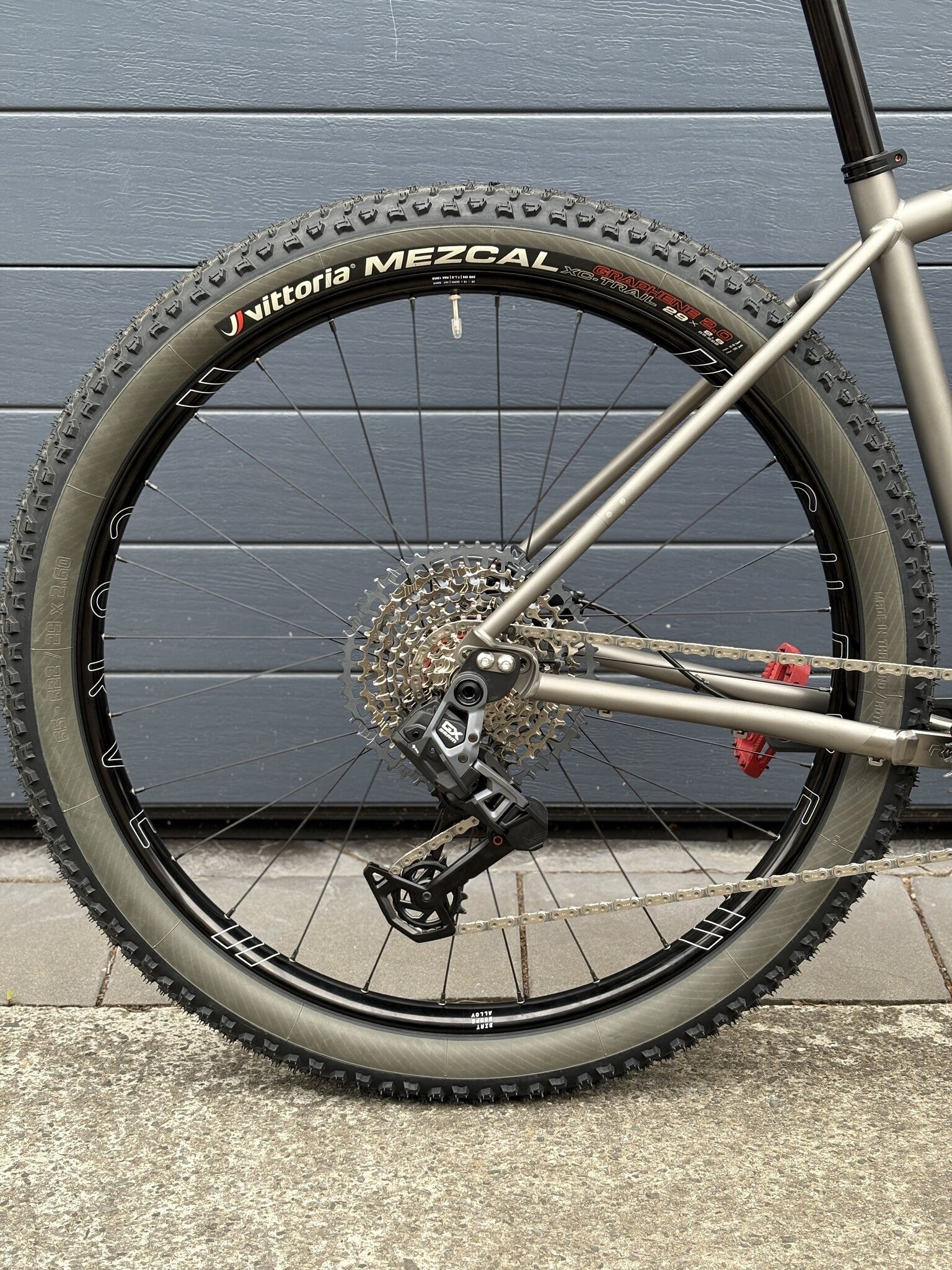

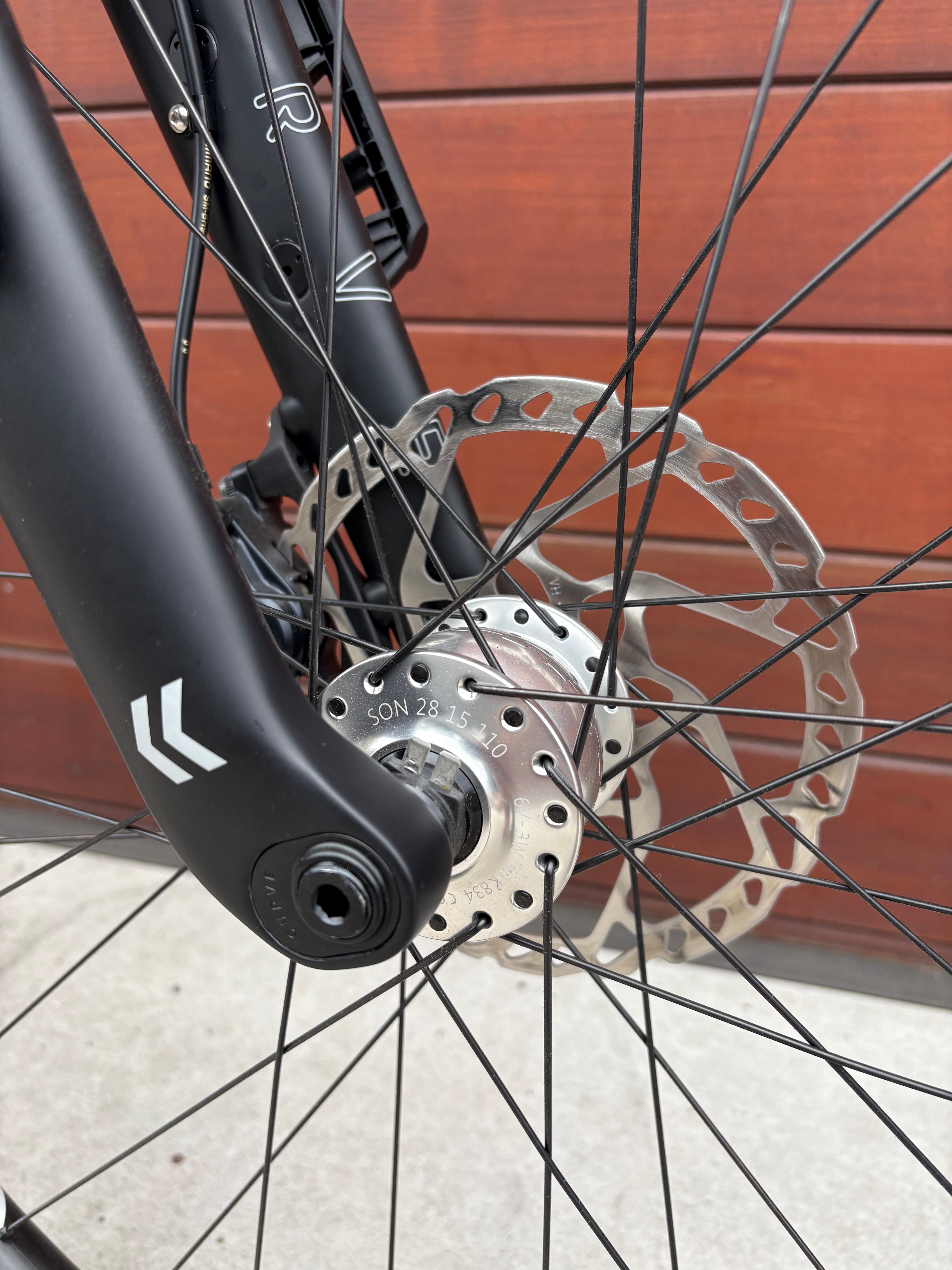

We have built this up as a House build with Curve Dirt Hoop Alloy Wheels, Sram AXS Transmission drive train, Deore XT brakes, Thomson Elite Seatpost and Stem, Mezcal 29x2.6 tyres.

Contact us for a custom build to your specification.

UpRock v2 Specifications

• 3Al - 2.5V Aerospace Grade 9 titanium
• 3 x cage mounts (2 on size XS)
• Top tube (“bento”) mounts on top tube

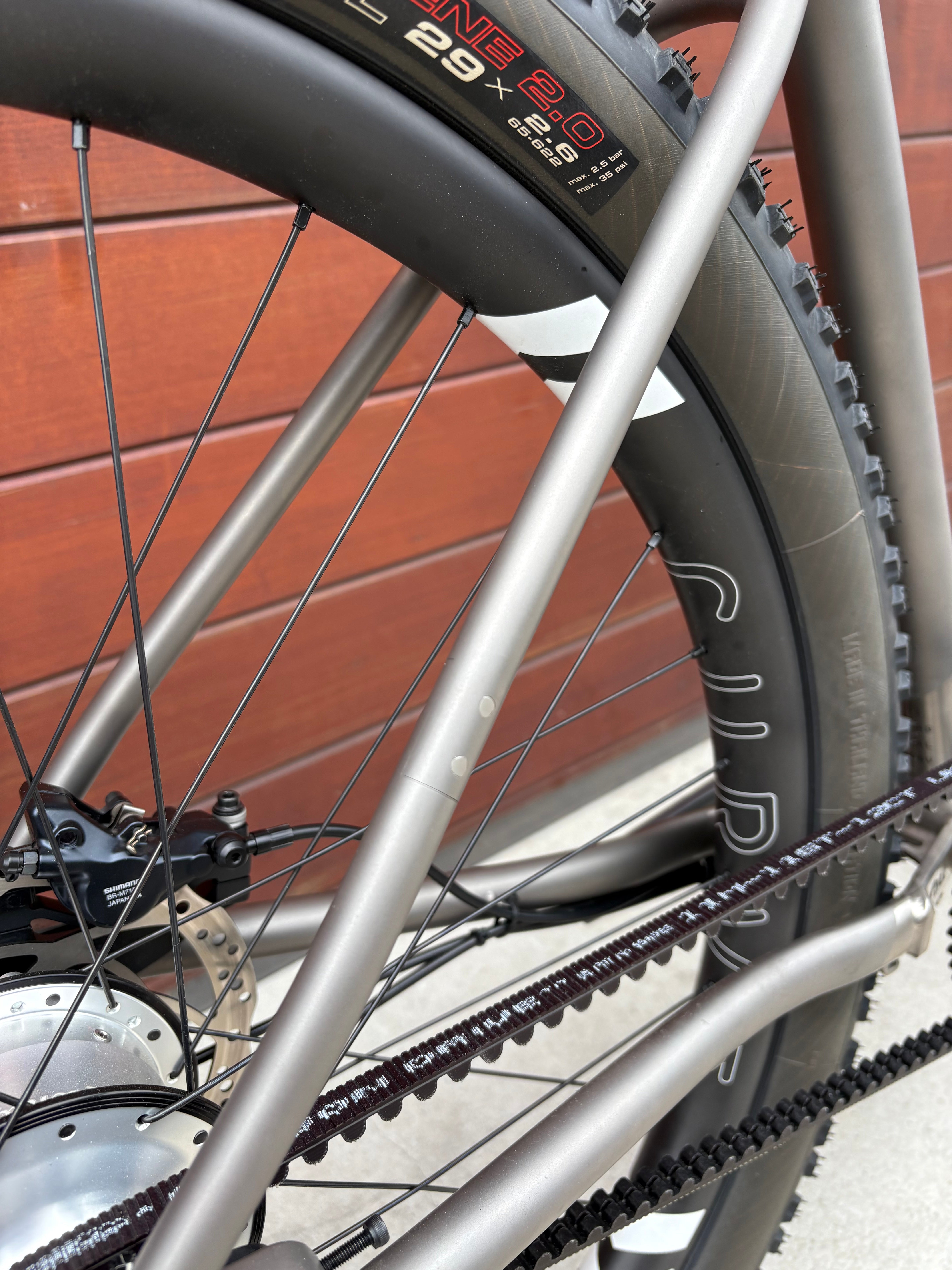

• Tyre clearance for 29 x 2.6" tyres (max). 78 mm of clearance between the stays

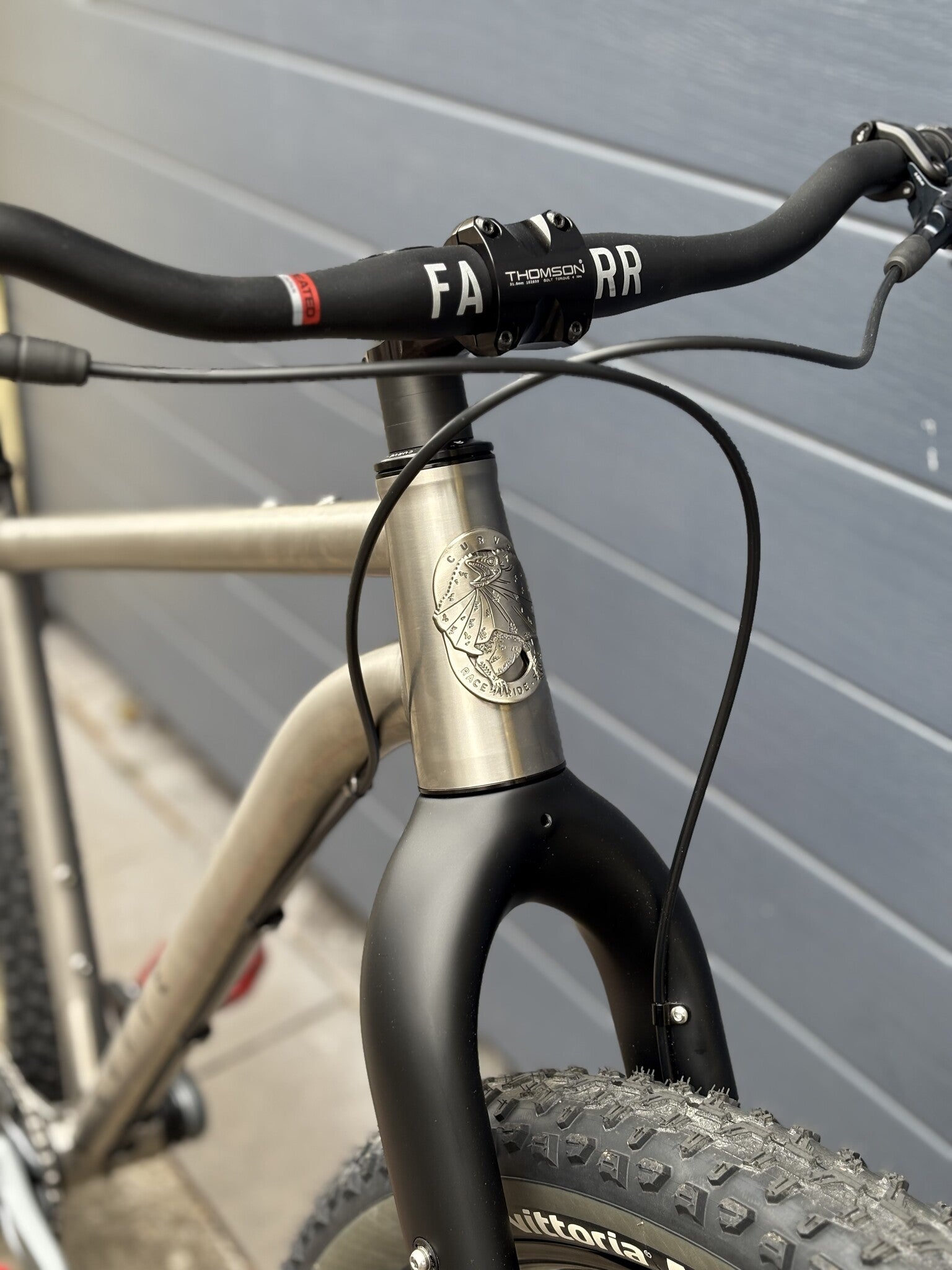

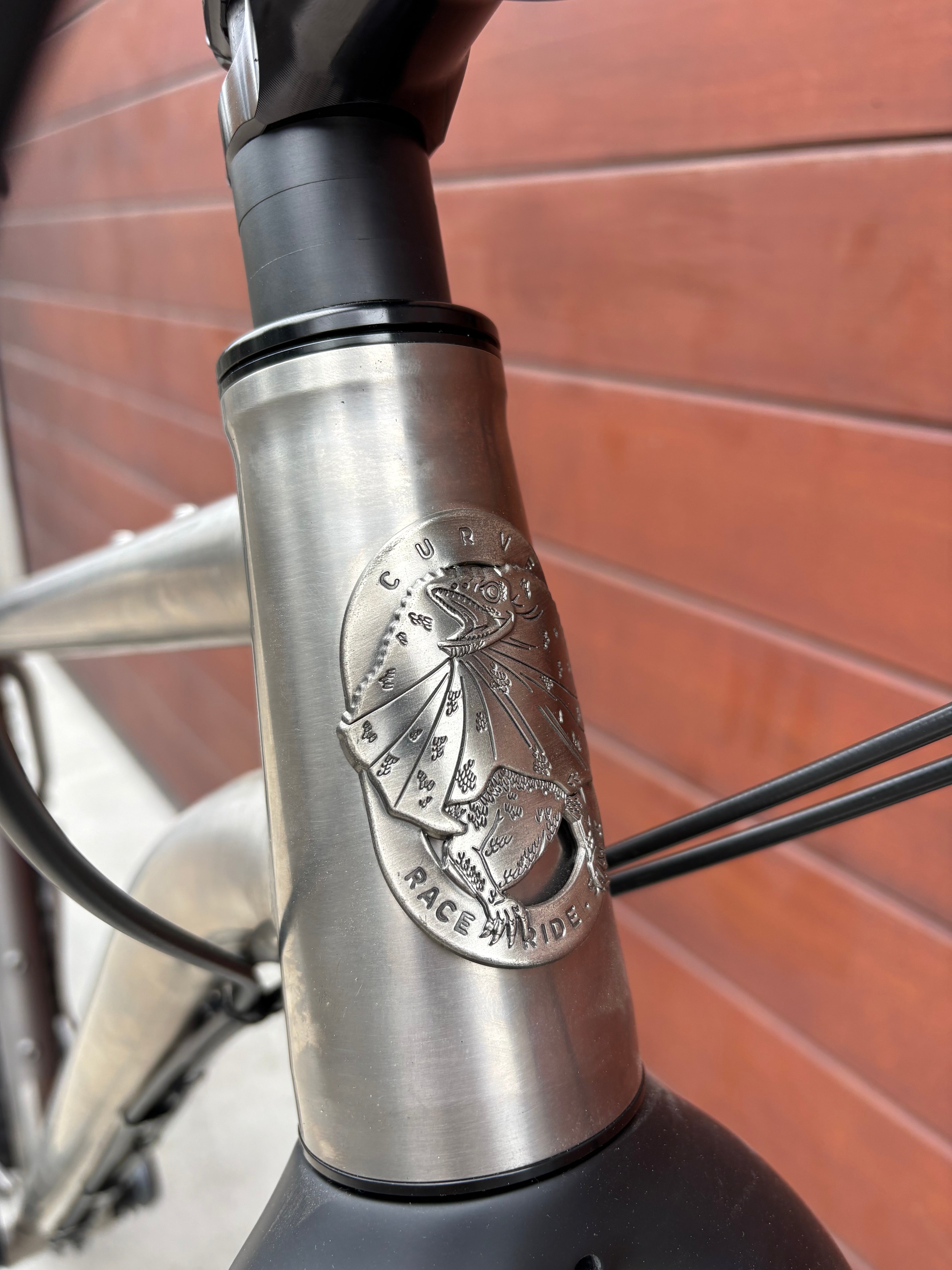

• Headtube: Tapered zero stack 44/56 mm
• Cable Routing: Full external cable routing. Stealth seat tube routing for dropper posts

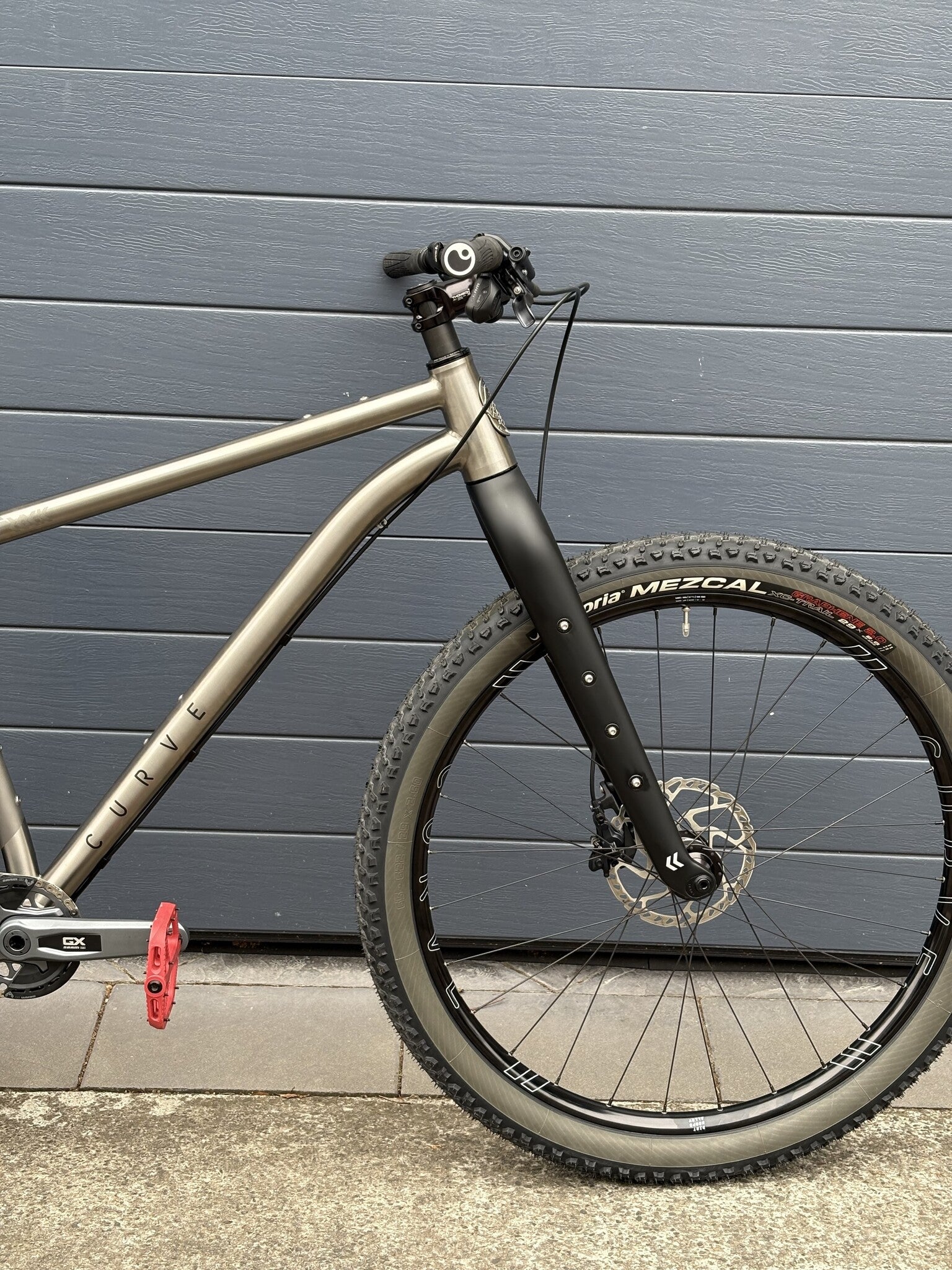

• Fork compatibility: 1 1/8” - 1 1/2” steerer. The frame is designed for a 120 mm travel suspension fork or a rigid fork with an axle-to-crown length of approx 500 mm

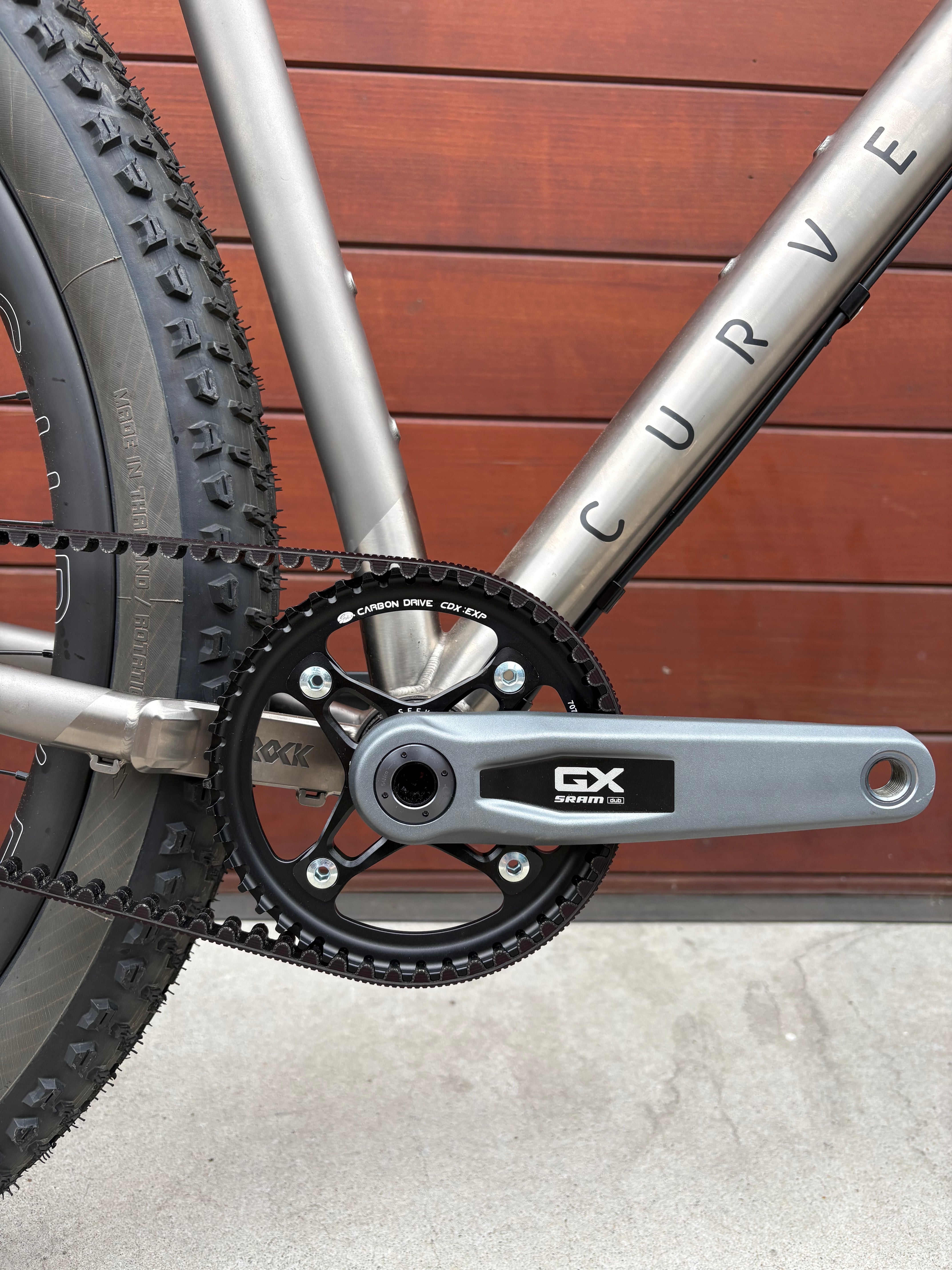

• Compatible only with 1x groupsets. Max 38t chainring

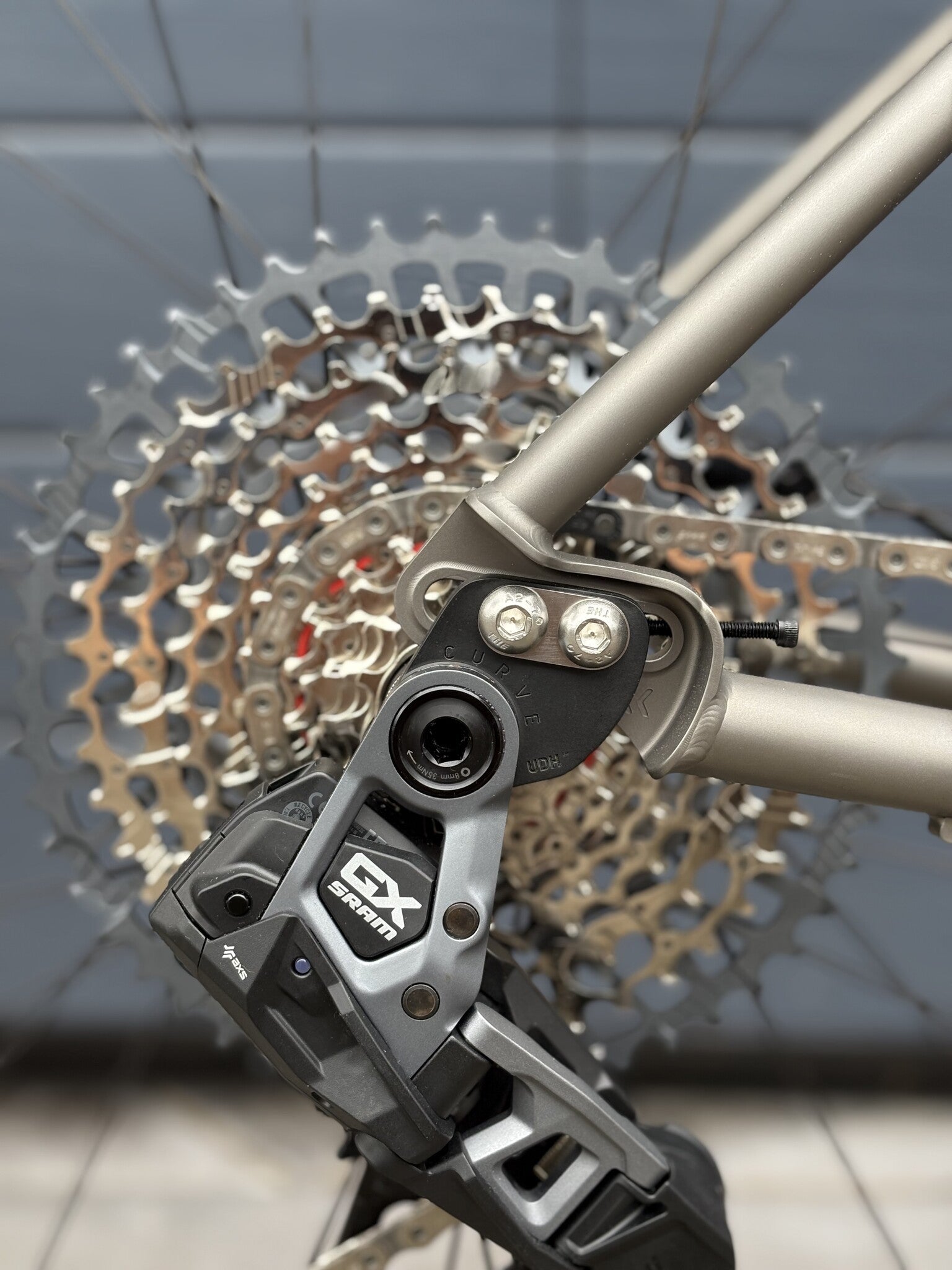

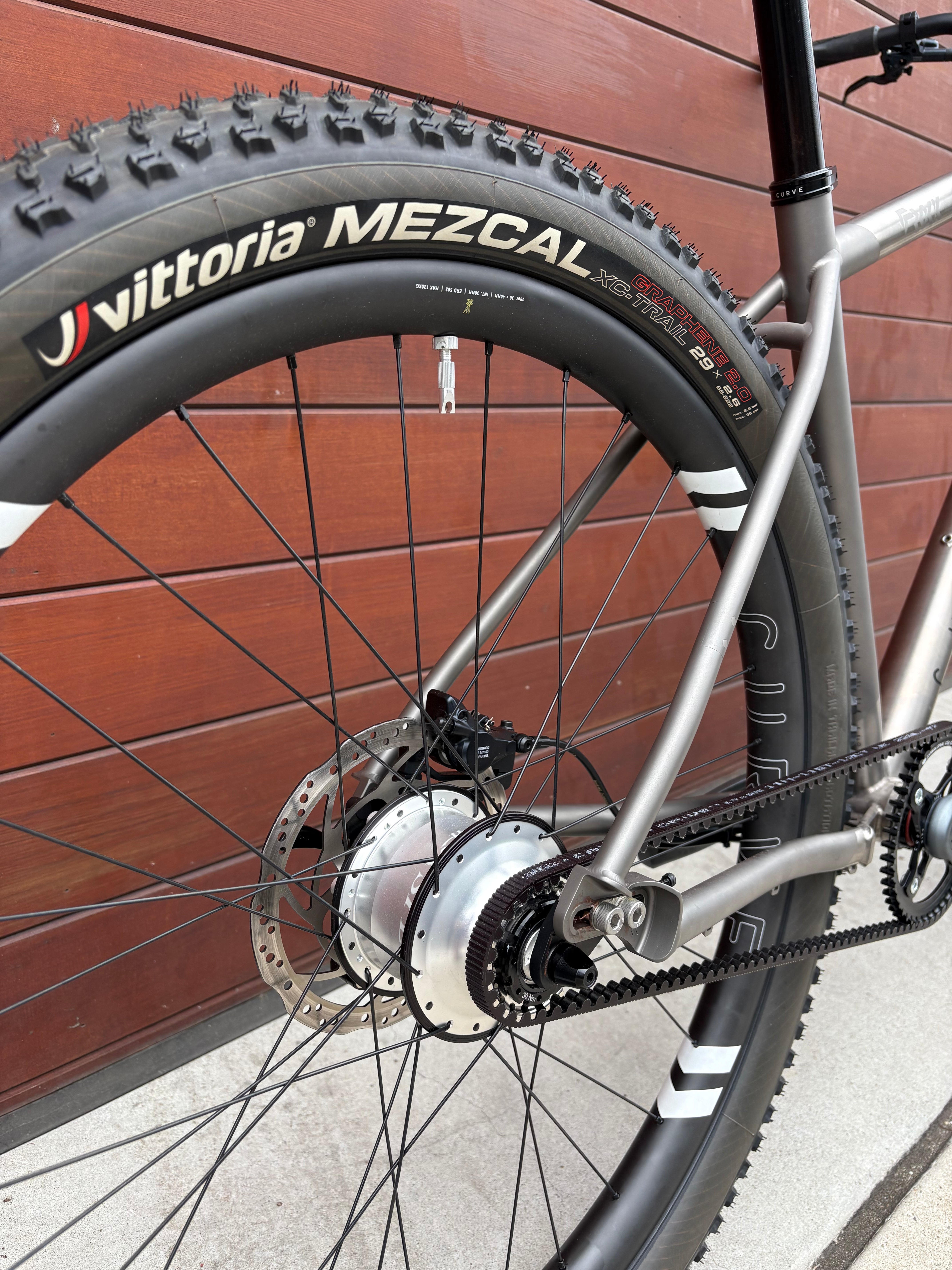

• CNC machined sliding dropouts with approx. 20 mm of adjustment
• Compatible with 31.6 mm seat posts and 34.9 mm seat clamps
• T47 bottom bracket (73 mm) - use external bearing bottom bracket cups
• Comes stock with 160 mm post-mount brake, boost-spacing, UDH compatible dropout insert (compatible with SRAM transmission derailleurs). Contact us for other insert options
