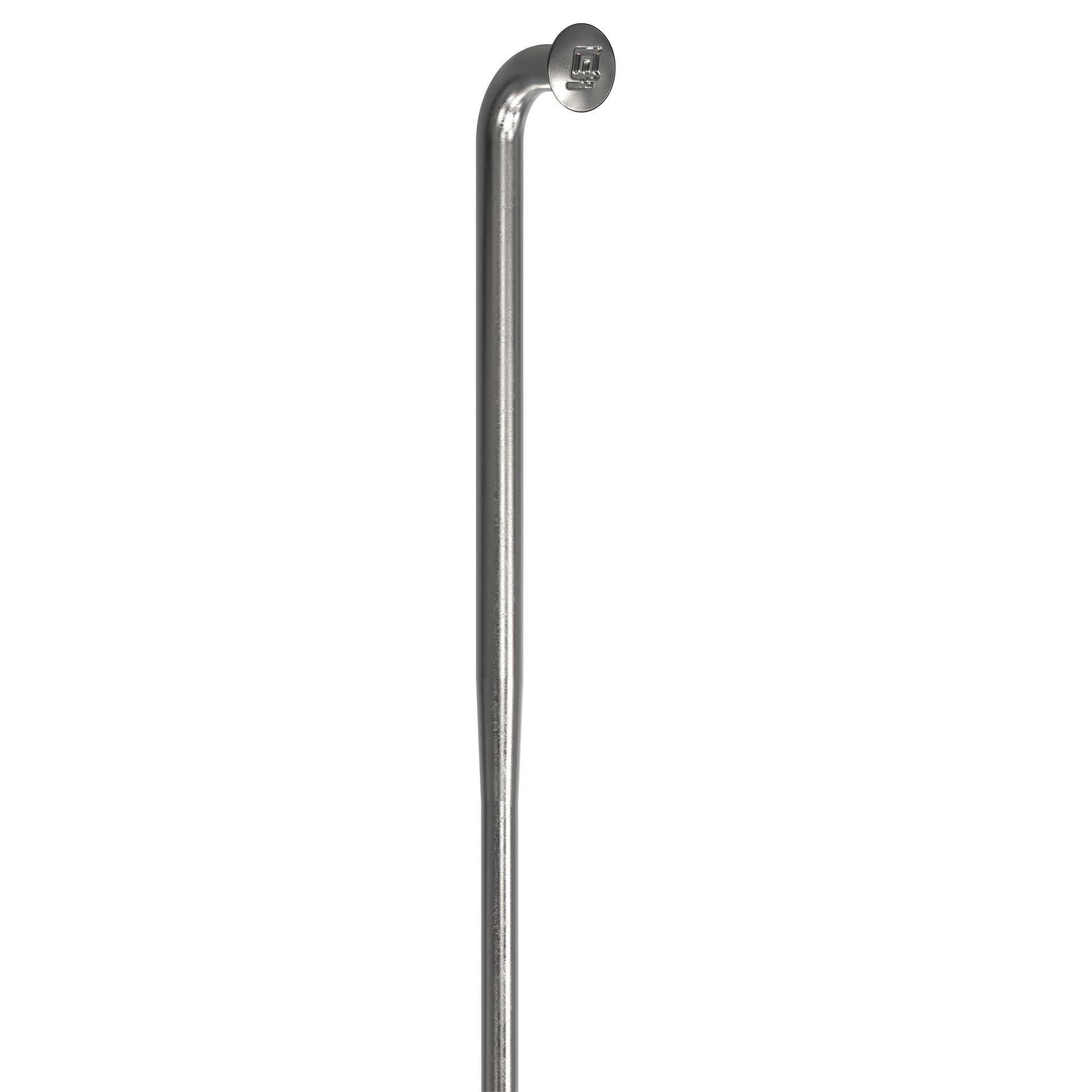

DT Swiss Alpine III Silver J-Bend Spokes - Inc Nipple

Product details
DT Alpine III is the spoke with the lowest weight in relation to its stability. This is accomplished through a complex production process. Starting with a spoke of 2.34 mm, the diameter is reduced at the thread to 2 mm and to 1.8 mm in the middle section during the cold forging process. This allows weight savings of 173 g compared to spokes with a constant diameter. Despite the light centre piece, DT Alpine III is very durable and is perfectly suited for the big loads occurring in high performance e-bike or tandem wheels.

Weight: 418 g for 64 spokes at a length of 264 mm.

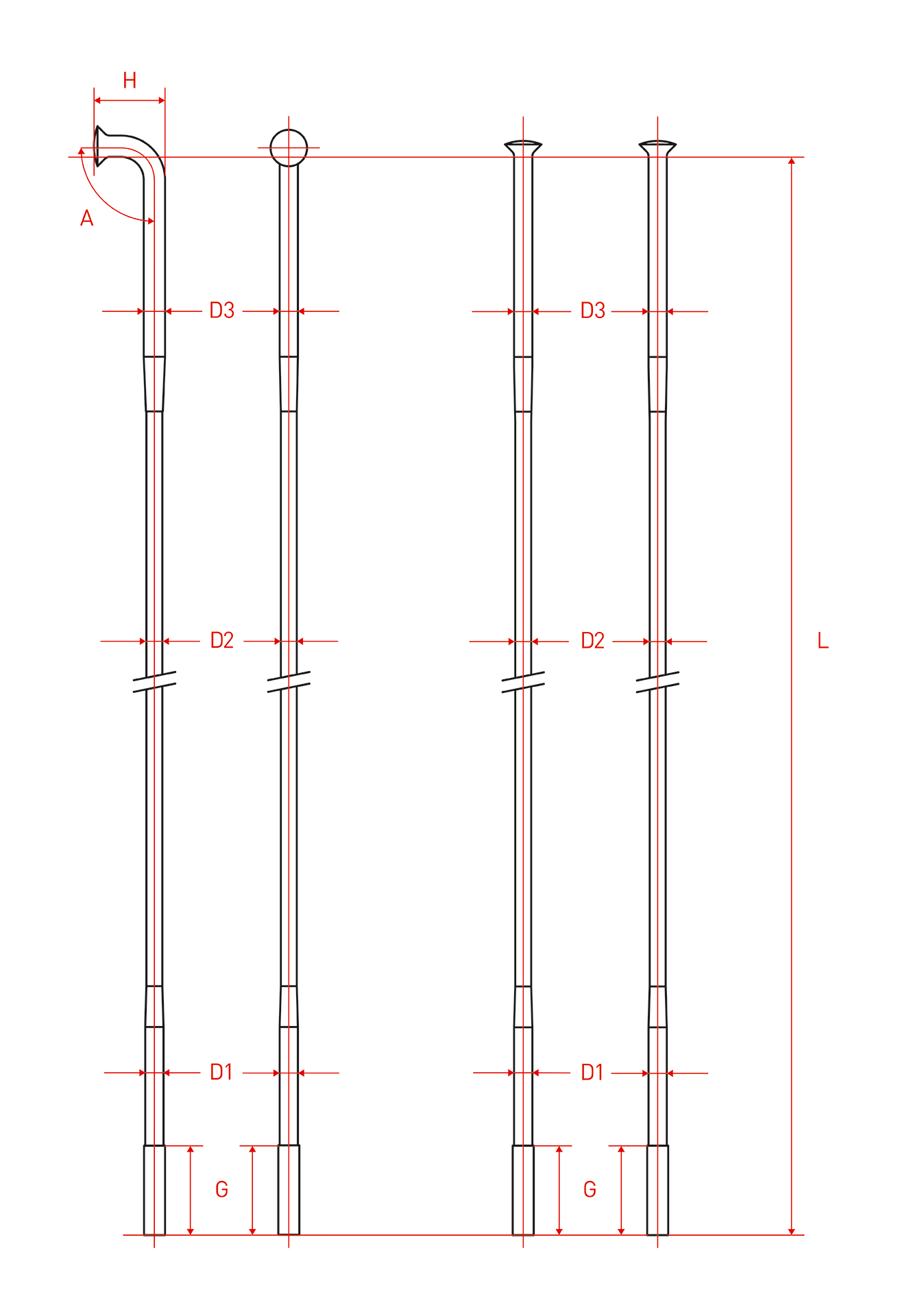

• Length [mm] (L) - up to 305mm
• Diameter 1 [mm] (D1) = 2
• Diameter 2 [mm] (D2) = 1.85
• Diameter 3 [mm] (D3) = 2.34
• Width 1 [mm] (B1)
• Width 2 [mm] (B2)
• Thread 2.0 FG2.3
• Height of head [mm] (H) 7.8
• Angle (A) 90-95
• Gauges 14/15 /13
