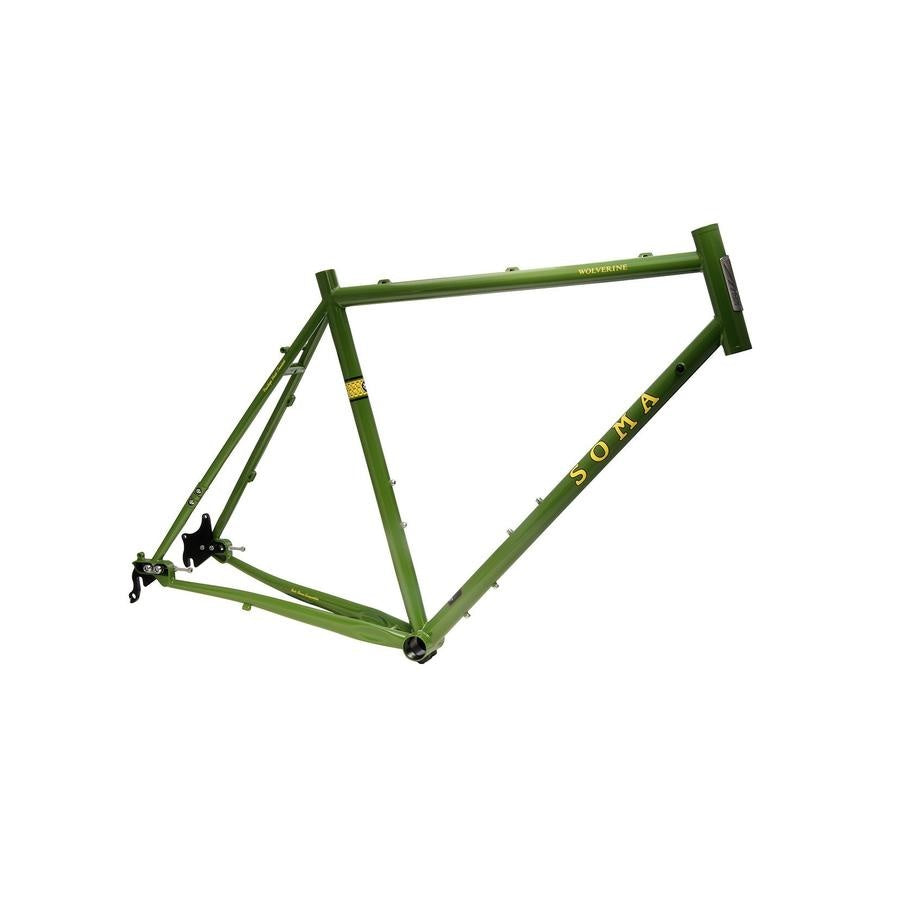

Soma Wolverine 4.0 Type B Frame (QR, Green)
Soma Wolverine 4.0 Type B Frame (QR, Green)
Shipping:
Same-day dispatch before 3 PM (except bikes)
Click & Collect
You can pick up 9am–5pm weekdays and 10am–4pm Saturdays from our Sydney shop at 278–282 Mitchell Rd, Alexandria. Most orders are ready within the hour.
Accepted Payment Methods:
About this product
One of our favourite custom builds of recent times, check out Peter's Belt-Drive Soma Wolverine for an example build.
[SPLIT]
[SPLIT]

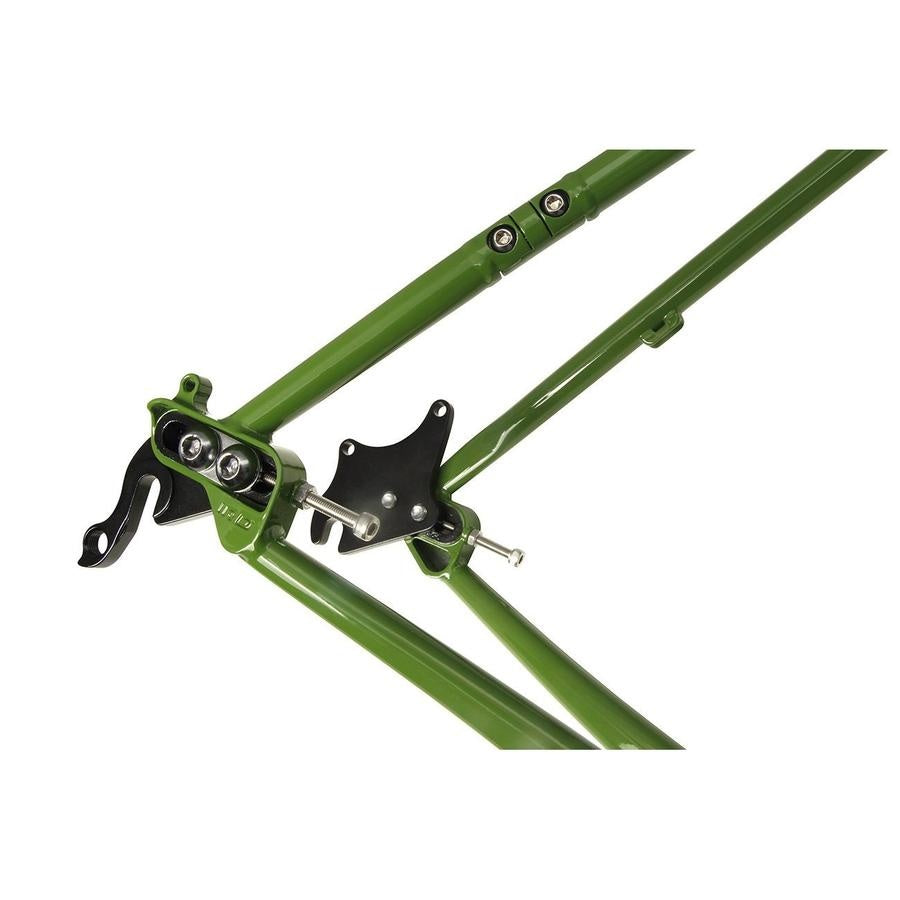

- Gates Carbon belt drive compatibile wit IRD Broski sliding dropouts making single speed or geared builds possible

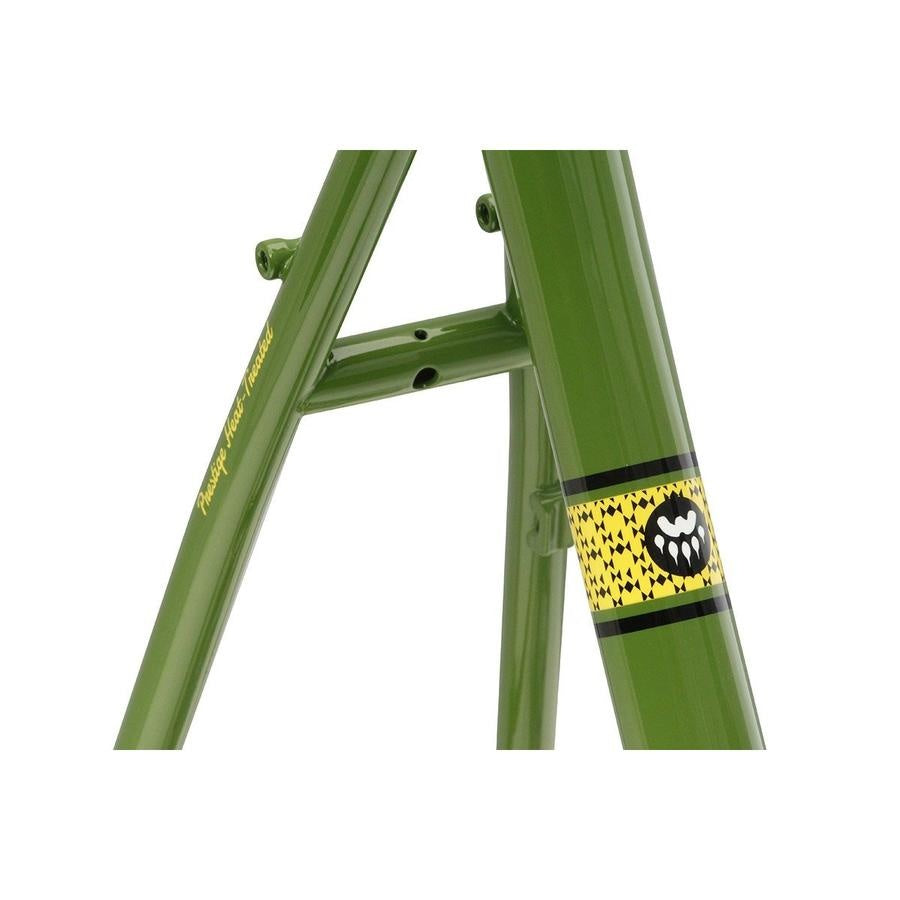

- Tange Prestige heat-treated double butted CrMo tube set
- Clearance for 700x45c tyres with fenders
- Rear hub spacing: 135mm 10mm quick release (can be upgraded to 142mm 12mm thru axle with different inserts)
- 1-1/8" size headtube
- Huge size range
- Multiple fork options
- Front derailleur clamp: 28.6mm
- Rear hub: 135mm spaced, standard QR axle
- Seatpost: 27.2mm
- Seat collar: 29.8 to 30mm (not included)
- Headset: 1-1/8" external cup (SHIS: EC34/28.6 | EC34/30)
- Bottom bracket shell: 68mm wide, English threads
- Brake compatibility: International Standard Disc mount, 160mm rotors
- Chainstay length range: 429-445mm (Please avoid the sliding the wheel to very back of the dropout)
[SPLIT]
|
Bike Size |
46 |
50 |
52 |
54 |
56 |
58 |
60 |
62 |
66 |
|
Seat Tube |
460 |
500 |
520 |
540 |
560 |
580 |
600 |
620 |
635 |
|
Top Tube Effective |
531 |
546 |
555 |
566 |
575 |
587 |
600 |
615 |
630 |
|
Seat Angle |
74 |
74 |
73.5 |
73.5 |
73.5 |
73 |
73 |
72.5 |
72.5 |
|
Head Angle |
71° |
71° |
71.5° |
72° |
72° |
72° |
72° |
72° |
72 |
|
BB Drop |
66 |
70 |
70 |
70 |
70 |
70 |
70 |
70 |
66 |
|
Chainstay Length |
427 |
427 |
427 |
427 |
427 |
427 |
427 |
427 |
427 |
|
Trail |
0 |
0 |
0 |
0 |
0 |
||||
|
Wheelbase Length |
1013 |
1027 |
1029 |
1034 |
1043 |
1050 |
1063 |
1070 |
1089 |
|
Standover |
739 |
767 |
780 |
803 |
820 |
836 |
853 |
869 |
876 |
|
Reach |
372 |
385 |
387 |
391 |
394 |
398 |
406 |
412 |
420 |
|
Stack |
554 |
554 |
566 |
591 |
605 |
619 |
635 |
644 |
668 |
|
Fork Rake |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|
Front Centre |
596 |
610 |
610 |
616 |
625 |
632 |
644 |
654 |
671 |
|
Headtube Length |
120 |
120 |
130 |
155 |
170 |
185 |
200 |
210 |
240 |
[SPLIT]
Soma Wolverine frames are covered by a three year warranty.
