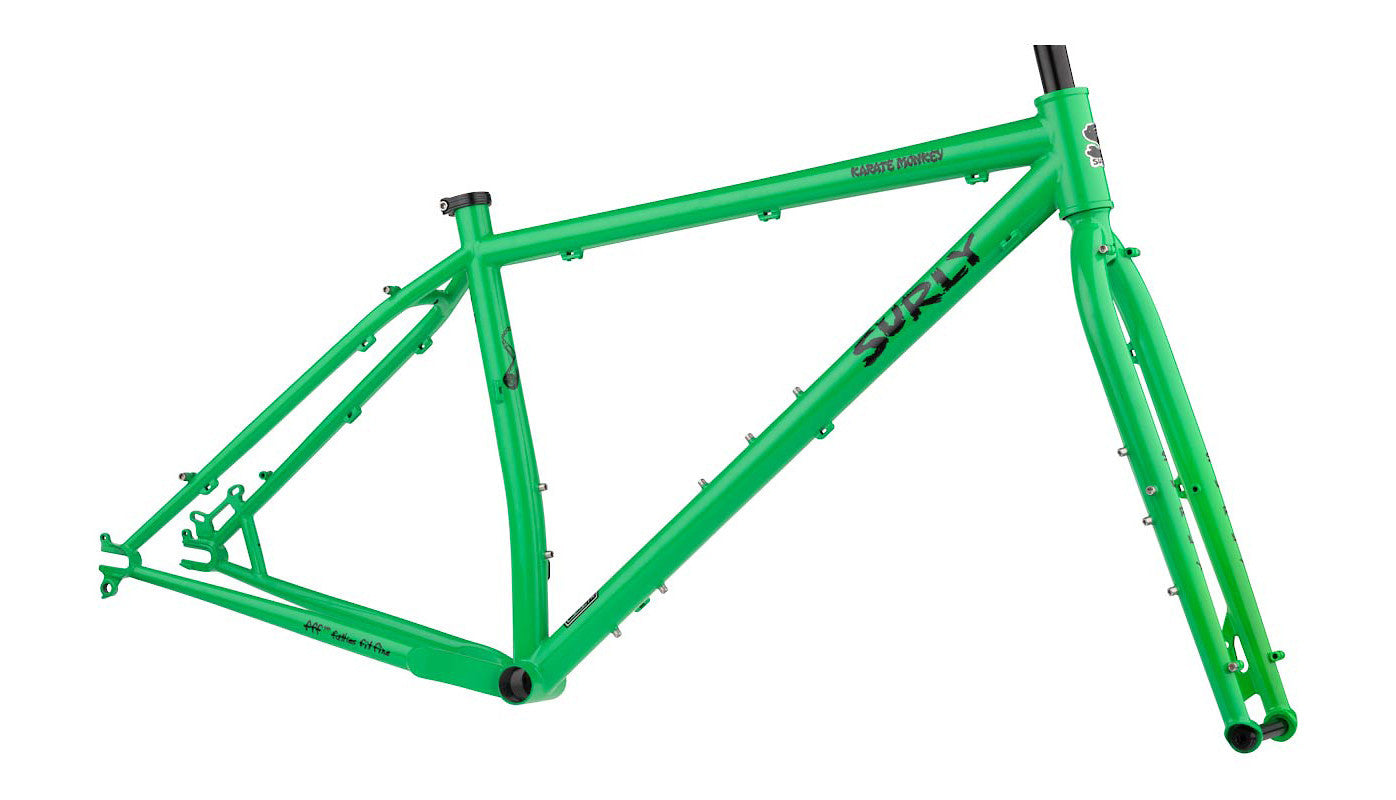

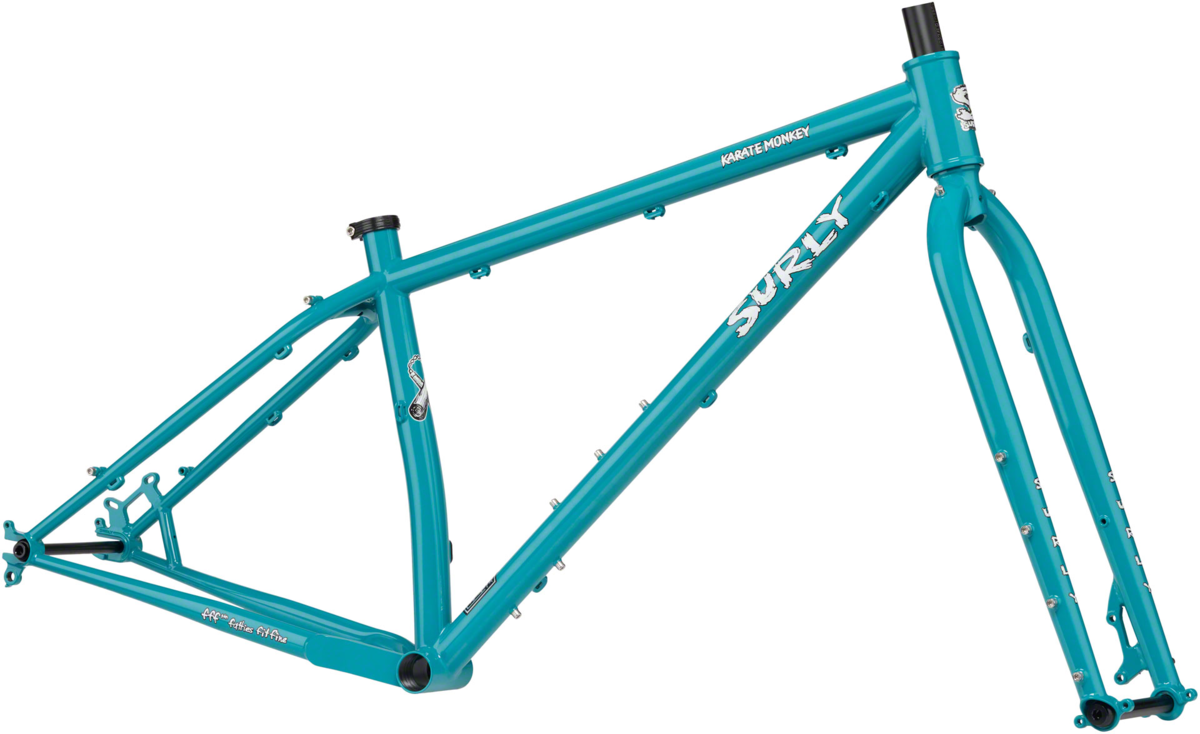

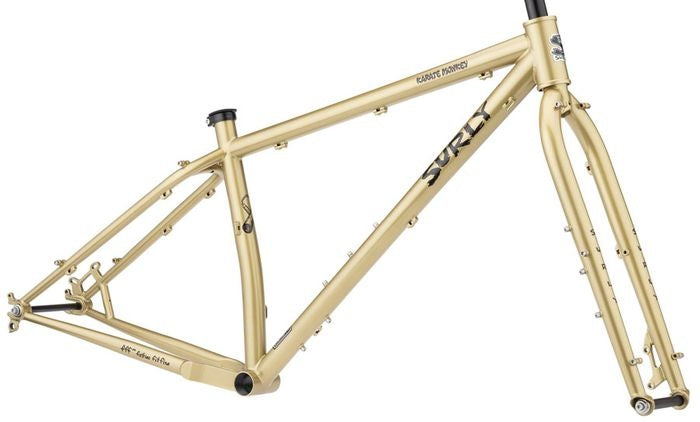

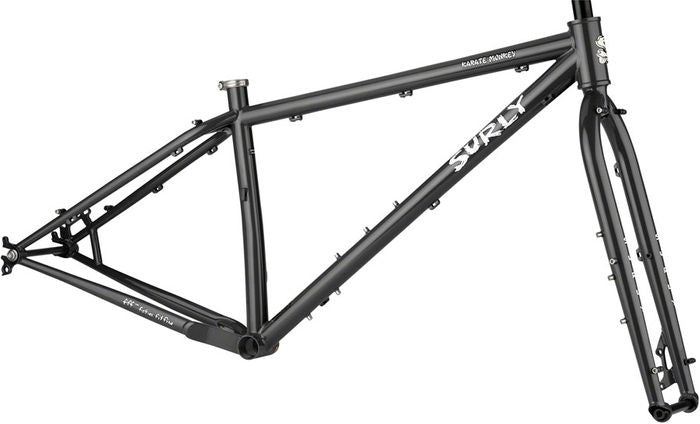

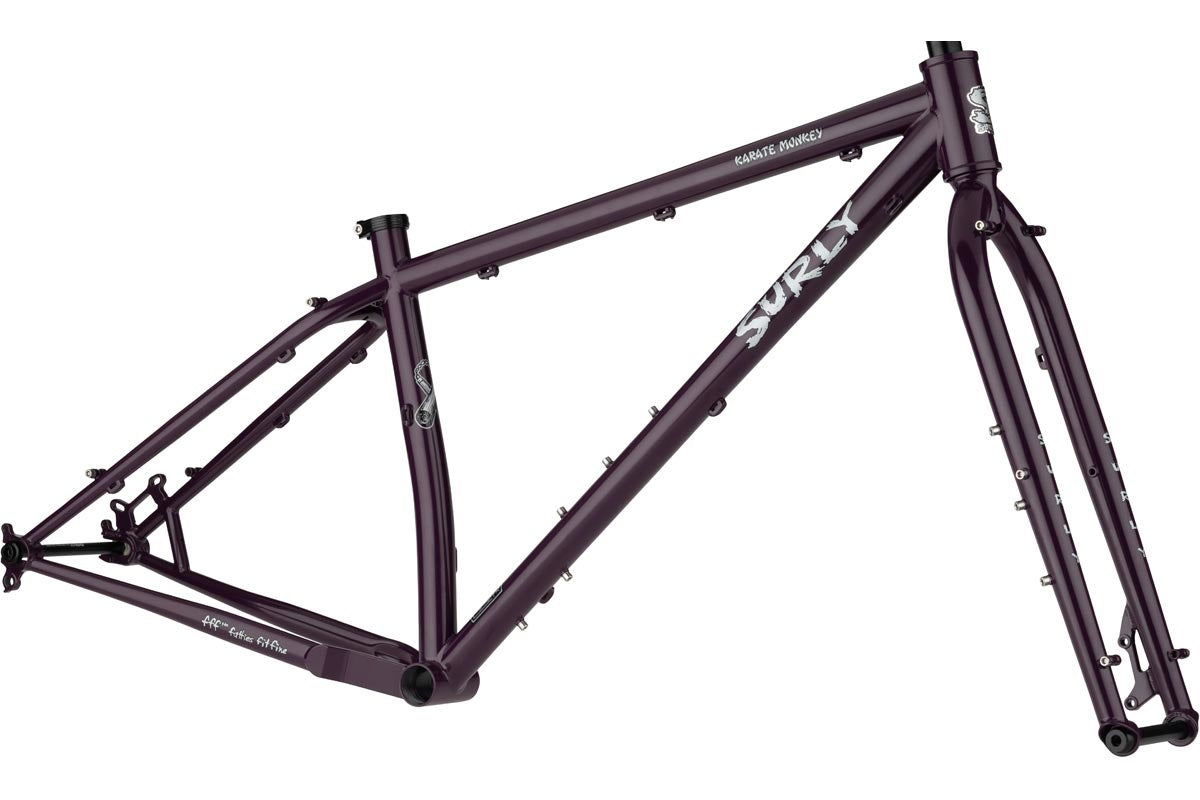

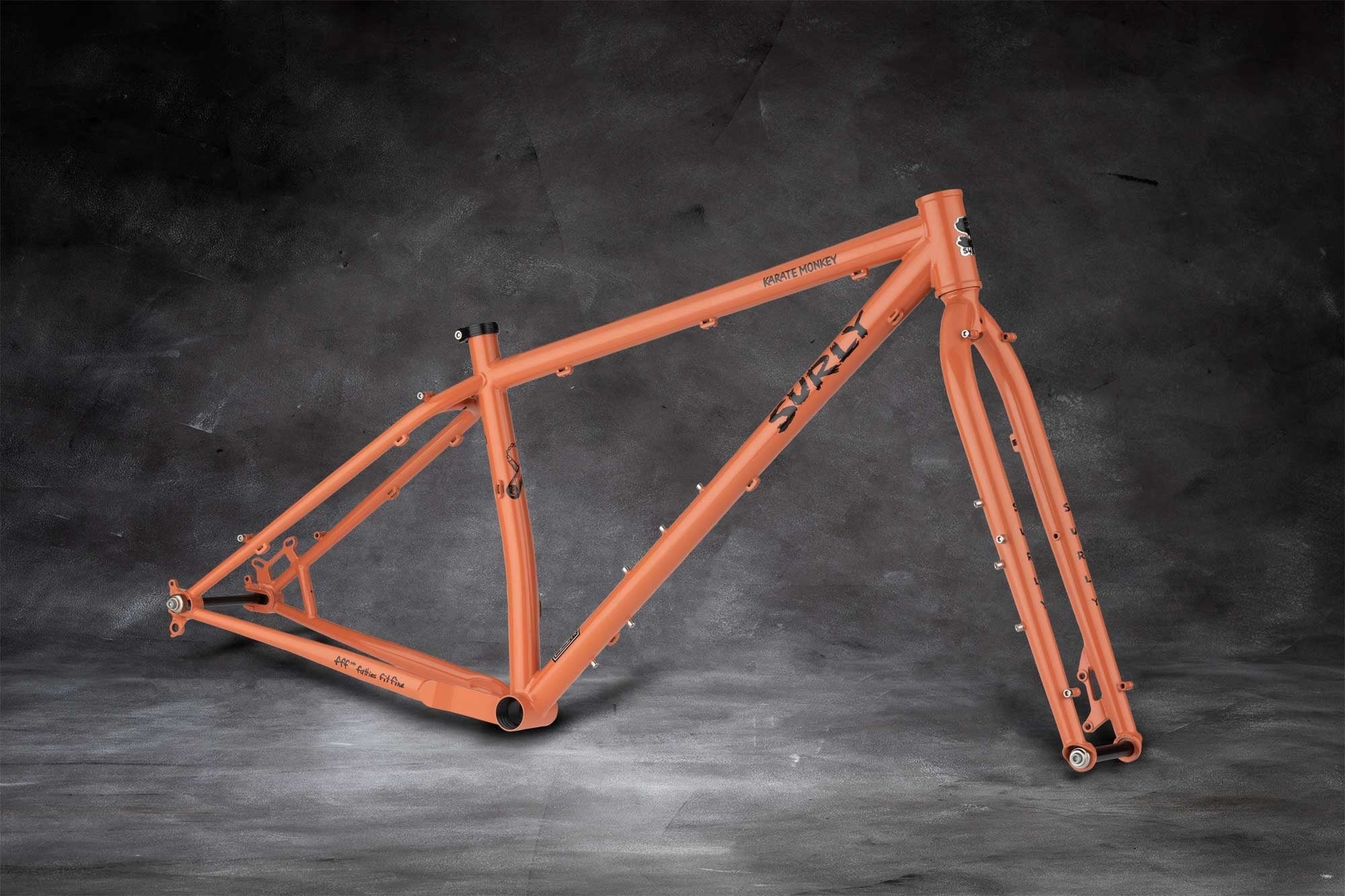

Surly Karate Monkey Frameset
Surly Karate Monkey Frameset
Regular price
$1,590.00
Regular price
Sale price
$1,590.00
Unit price
per
Taxes included.
Shipping:
Same-day dispatch before 3 PM (except bikes)
Click & Collect
You can pick up 9am–5pm weekdays and 10am–4pm Saturdays from our Sydney shop at 278–282 Mitchell Rd, Alexandria. Most orders are ready within the hour.
Accepted Payment Methods:
About this product
A perennial staff favorite for general trail riding and bikepacking, super versatile and super tough.
Suspension corrected fork, compatible with dropper seat post, 44mm headtube, tyre clearance for 29” x 2.5” or 27.5” x 3”. Throw whatever you have on this baby and she'll be able to Make. It. Work!!! (.....except for those rim brakes.....)
See you on the dirty streets, Champ!
Geometry
| SIZE | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Reach | 377 | 402 | 427 | 450 | 472 |
| Stack | 597 | 597 | 597 | 606 | 615 |
| Head Tube Angle | 69.0° | 69.0° | 69.0° | 69.0° | 69.0° |
| Head Tube Length | 100 | 100 | 100 | 110 | 120 |
| Seat Tube Length | 330 | 368 | 419 | 470 | 521 |
| BB Drop | 55 | 55 | 55 | 55 | 55 |
| Wheelbase | 1053 | 1078 | 1103 | 1129 | 1155 |
| Chainstay Length | 423 | 423 | 423 | 423 | 423 |
| Top Tube Length, Actual | 549.7 | 560.4 | 575 | 597.5 | 624.5 |
| Top Tube Length, Effective | 560 | 585 | 610 | 635 | 660 |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
| Standover Height | 743 | 759 | 783 | 812 | 827 |
| Crank Length | 170 | 170 | 175 | 175 | 175 |
| Fork Length | 483 | 483 | 483 | 483 | 483 |
| Fork Rake | 47 | 47 | 47 | 47 | 47 |
