Description
On sale $300 off and free shipping (Aus Only and excludes some remote destinations, contact us if unsure)

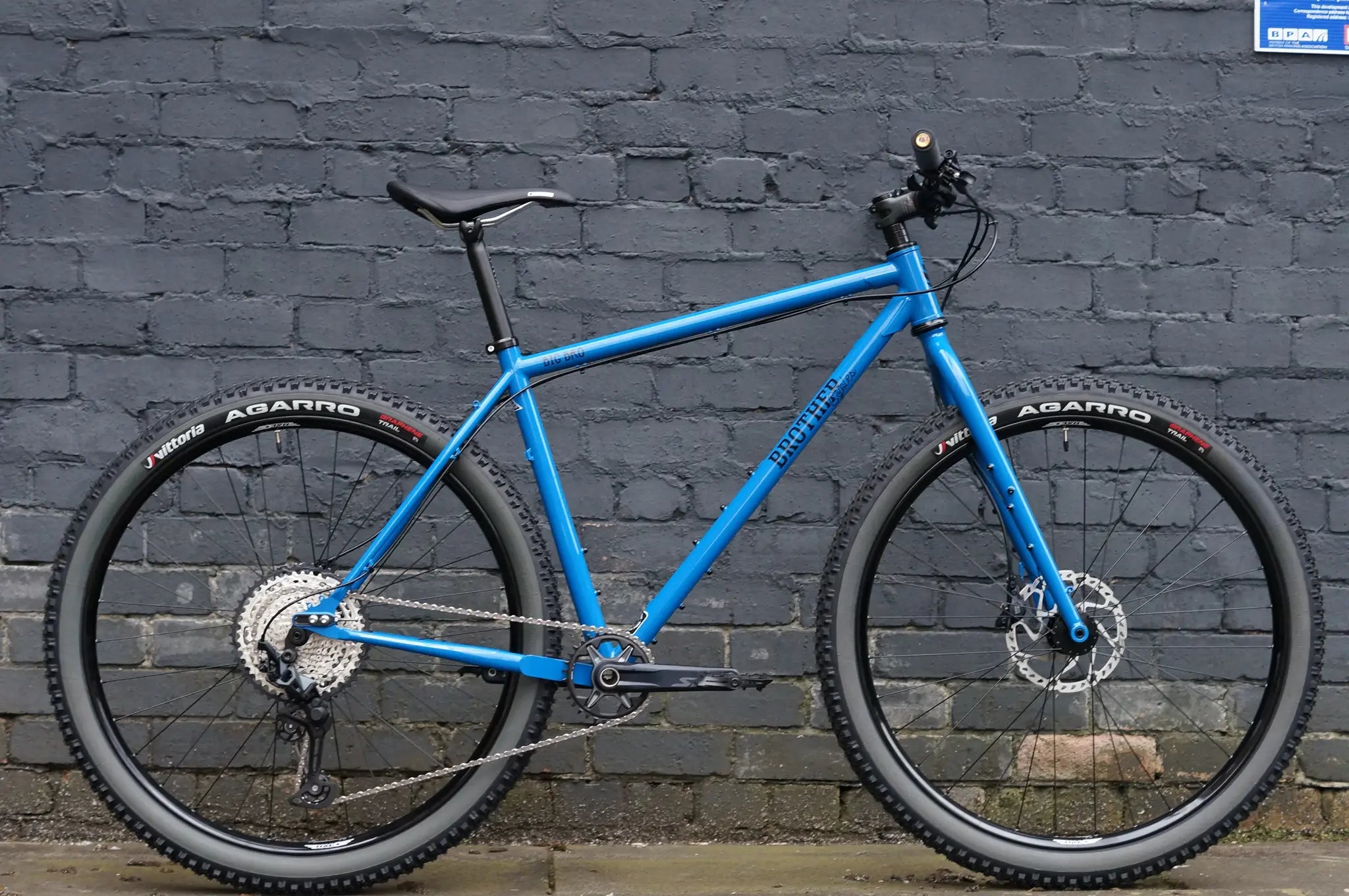

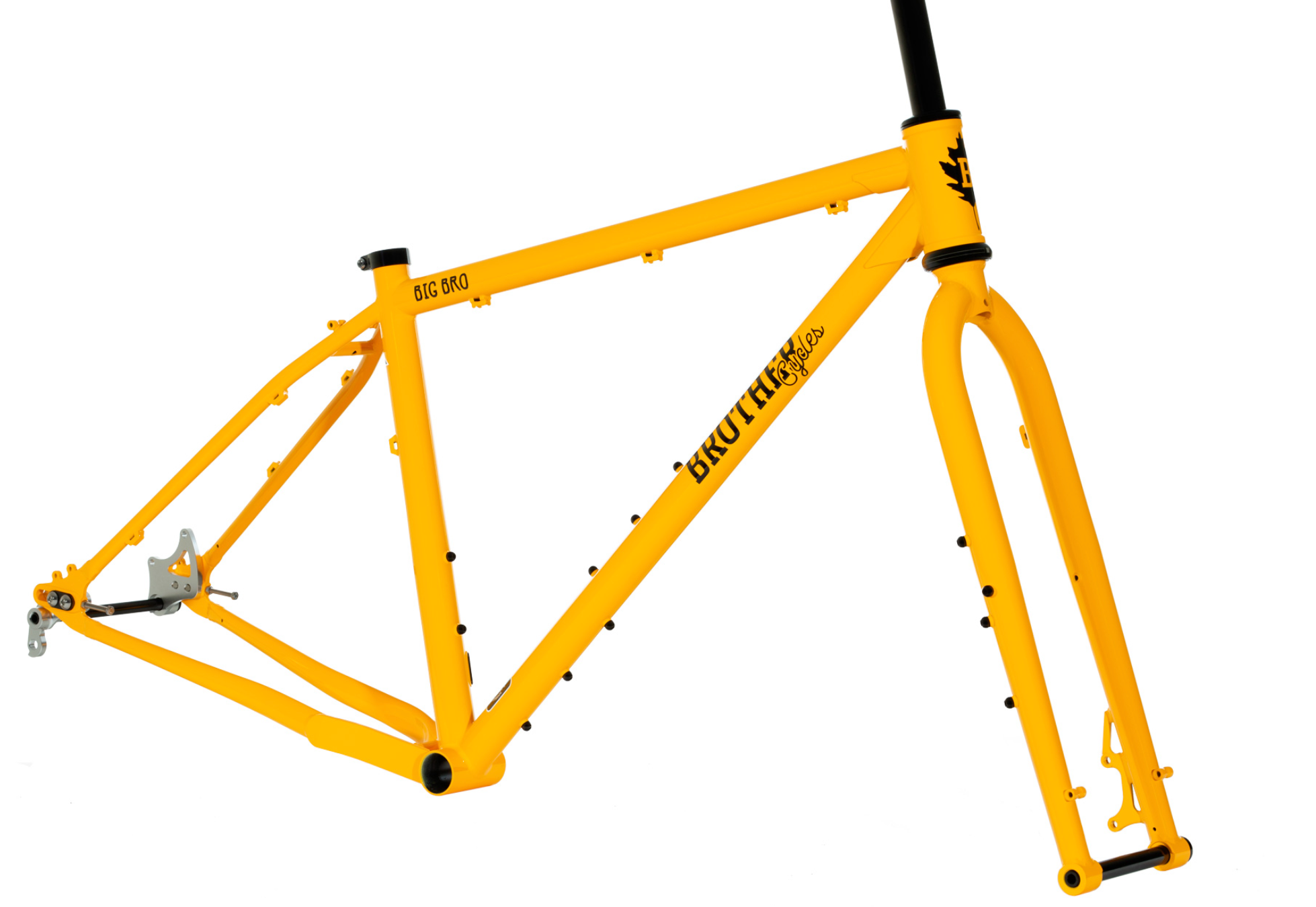

The Brother Cycles Big Bro is one of our favorite all around touring and bikepacking frames.
Sliding dropouts give you the option to vary chain stay length, run as singlespeed or with a Rohloff or IGH.
Lots of mounts for attaching racks and cargo, and very generous tyre clearance.
It very nicely straddles the divide between a very capable touring bike and a mountain bike.
Features:
- Tubing - 4130 Chromoly Steel - Double-butted main triangle, ED coated
- Brake Compatibility: 51mm IS disc brake mount, 180mm max rotor size
- Dropouts: Boost 12x148mm Thru axle included
- Seatpost Diameter: 30.9mm
- Seat clamp Diameter: 33.1mm (included)
- Heaedset: 44mm, SHIS ZS44/28.6 upper, EC44/40 lower (not included)
- Front derailleur clamp diameter: 34.9mm high direct-mount (adapter available separately)
- Bottom Bracket Shell: 73mm, ISO threaded
- Max tyre clearance: 29"x2.6" or 27.4"x3.0"
- Fork: 4130 Chromoly tapered unicrown fork, ED coated, 15x110 Boost thru axle (included), 3 sets bottle cage mounts on all sides
- Chainring clearance: 44-30t double, 38t single
- Weight: medium is 2.6kg frame, 1.37kg fork
Geometry:
| SIZE | S | M | L | XL |
|---|---|---|---|---|
| ST Length | 406 | 457 | 508 | 559 |
| TT Length | 556 | 571 | 595 | 622 |
| Top Tube Effective | 575 | 595 | 620 | 645 |
| Head Tube | 95 | 100 | 110 | 125 |
| Head Angle | 69.5 | 70 | 70.5 | 70.5 |
| Seat Angle | 73 | 73 | 73 | 73 |
| BB Drop | 60 | 60 | 60 | 60 |
| Min Chainstay | 445 | 445 | 445 | 445 |
| Fork Length | 483 | 483 | 483 | 483 |
| Fork Rake | 46 | 46 | 46 | 46 |
| Stack | 598 | 605 | 616 | 630 |
| Reach | 392 | 410 | 432 | 452 |
| Standover | 782 | 810 | 840 | 871 |
| Wheelbase | 1083 | 1098 | 1118 | 1144 |
Omafiets is located on unceded Gadigal land – we pay our respects to Aboriginal elders past and present.

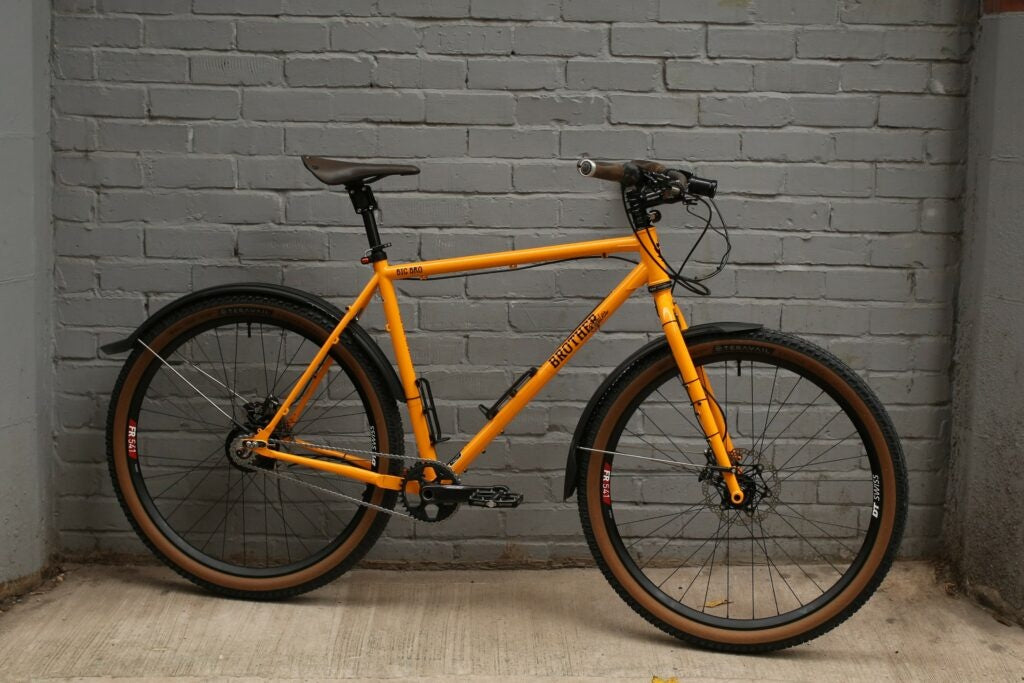

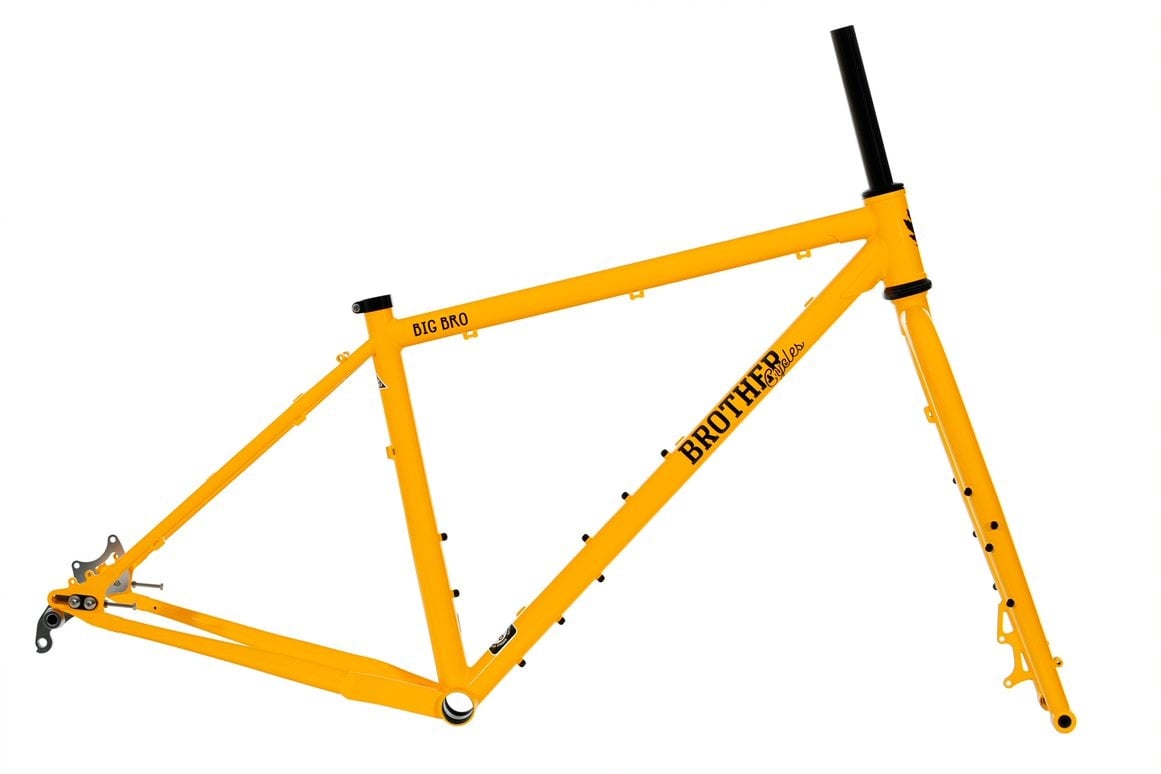

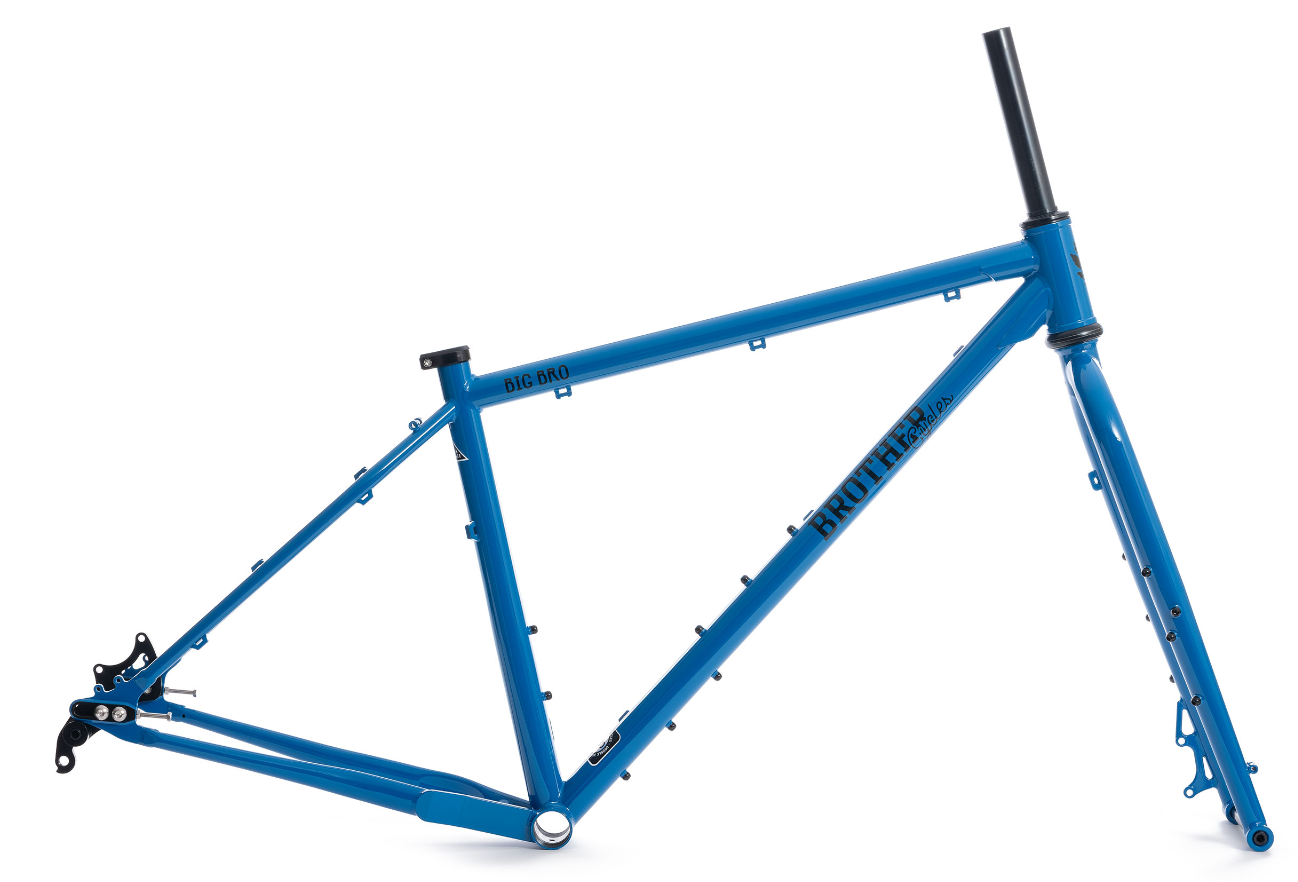

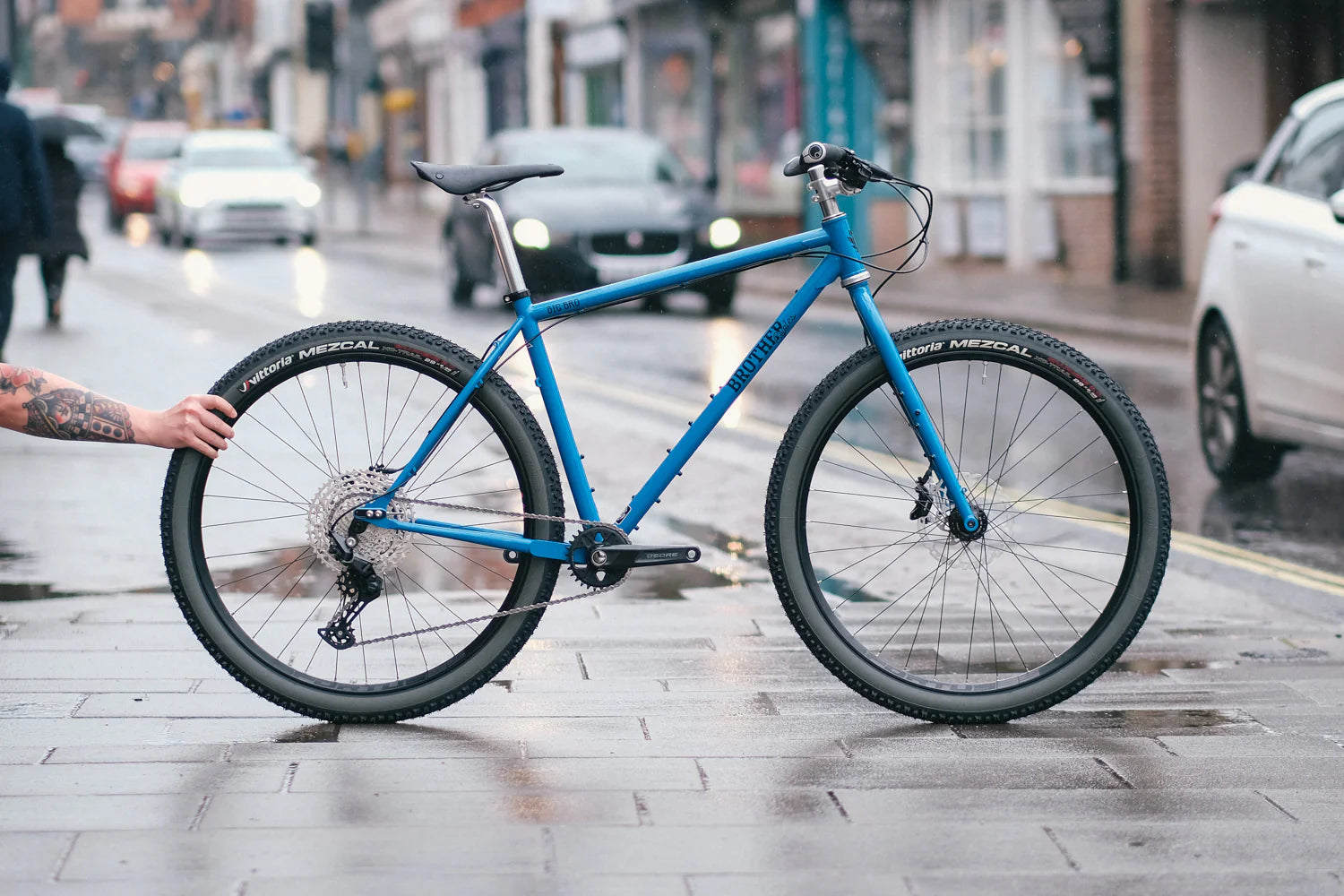

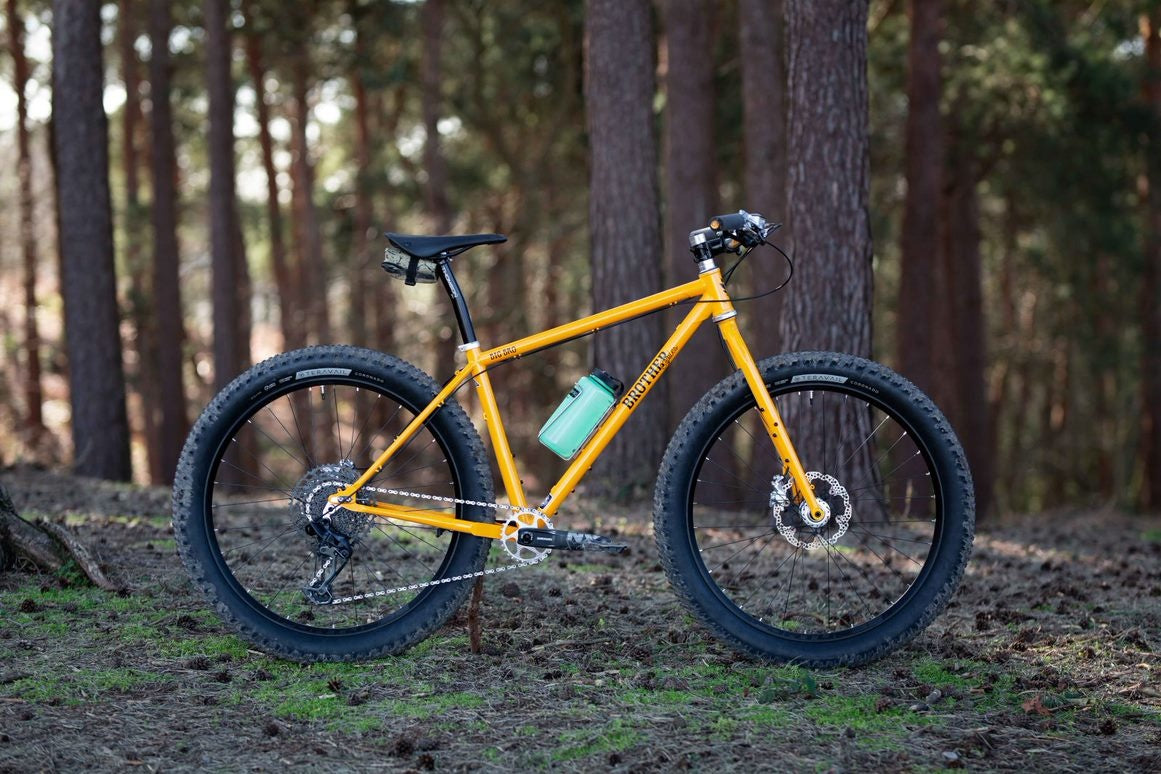

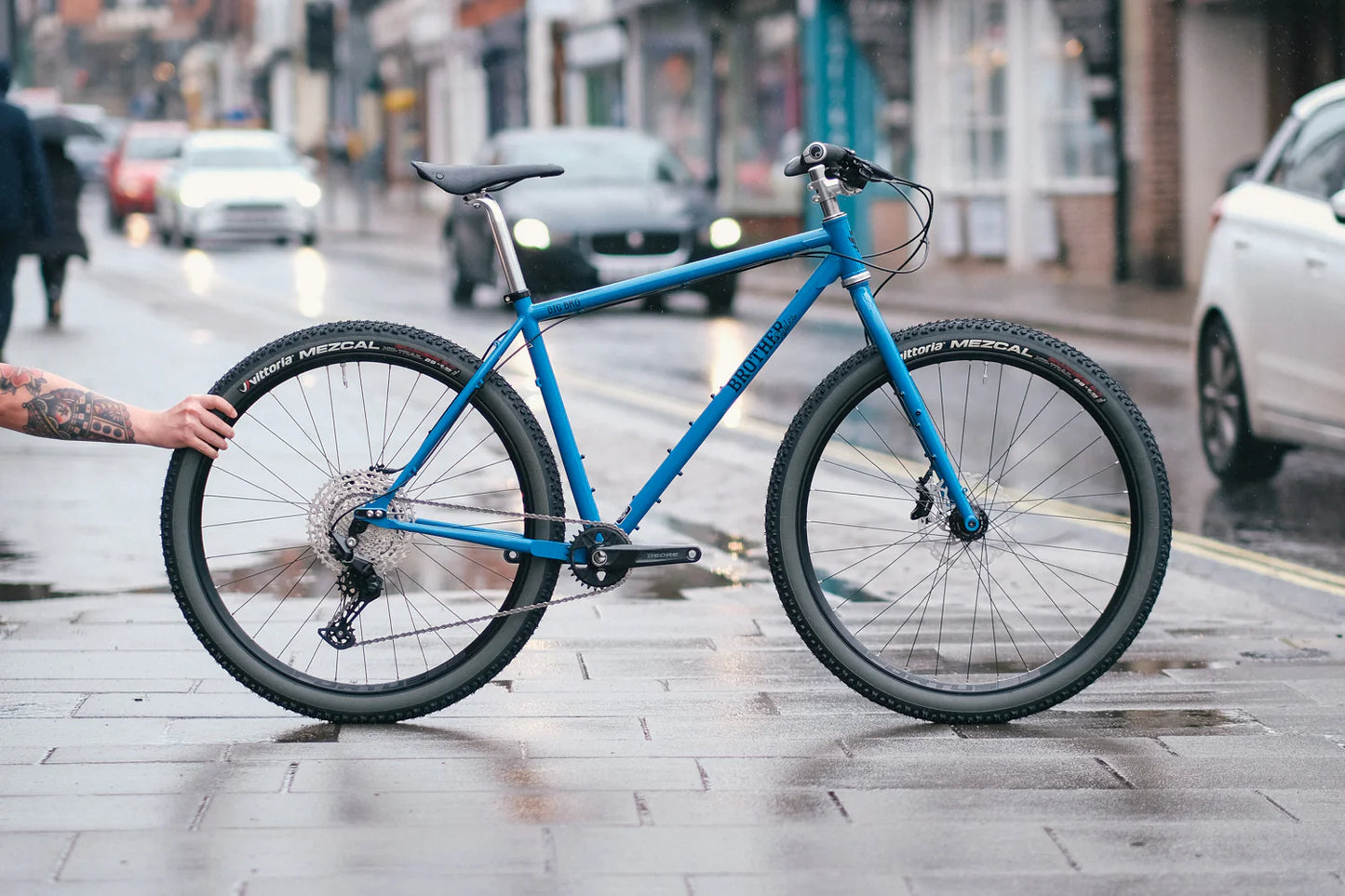

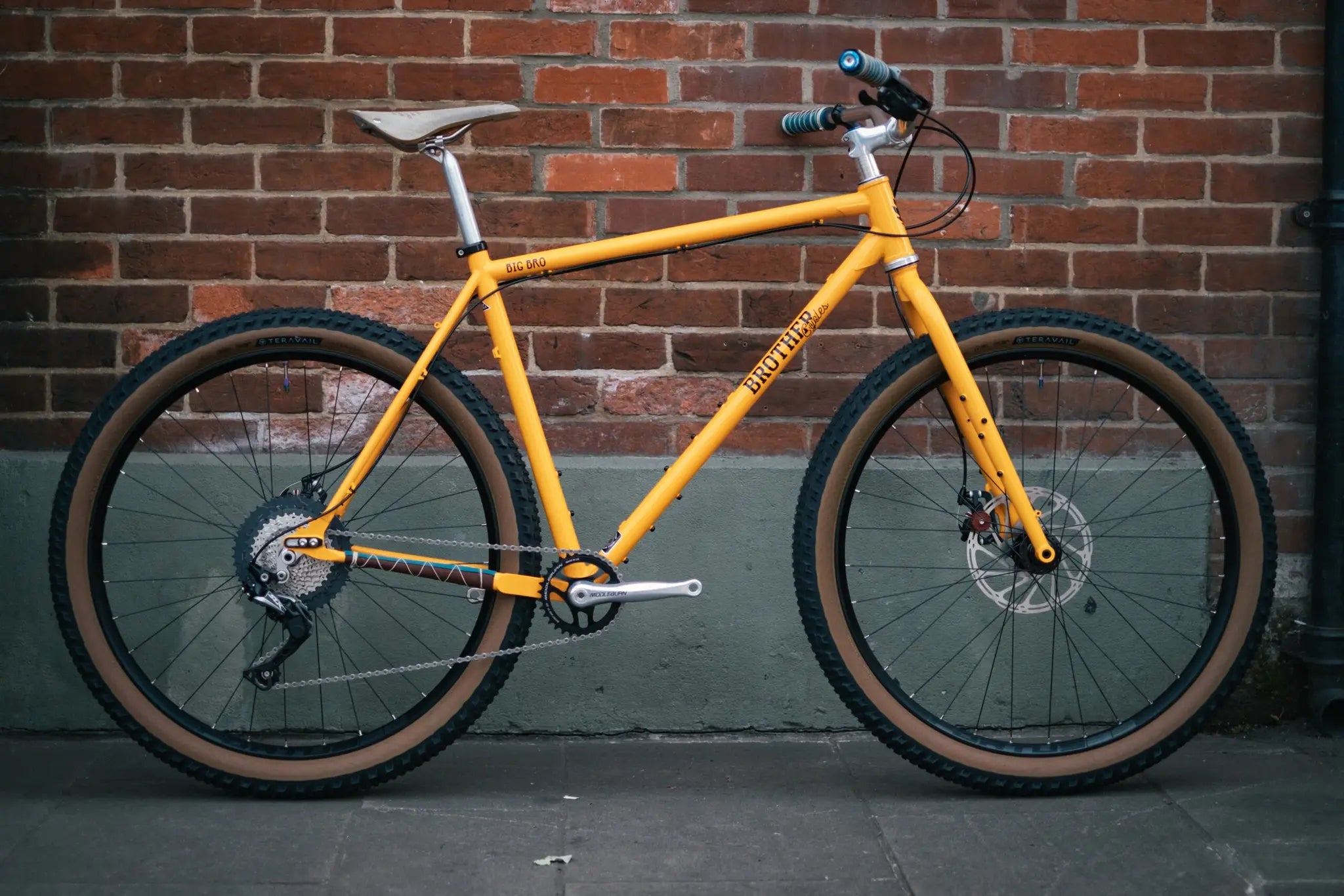

Product Images - Brother Cycles Big Bro Frameset
