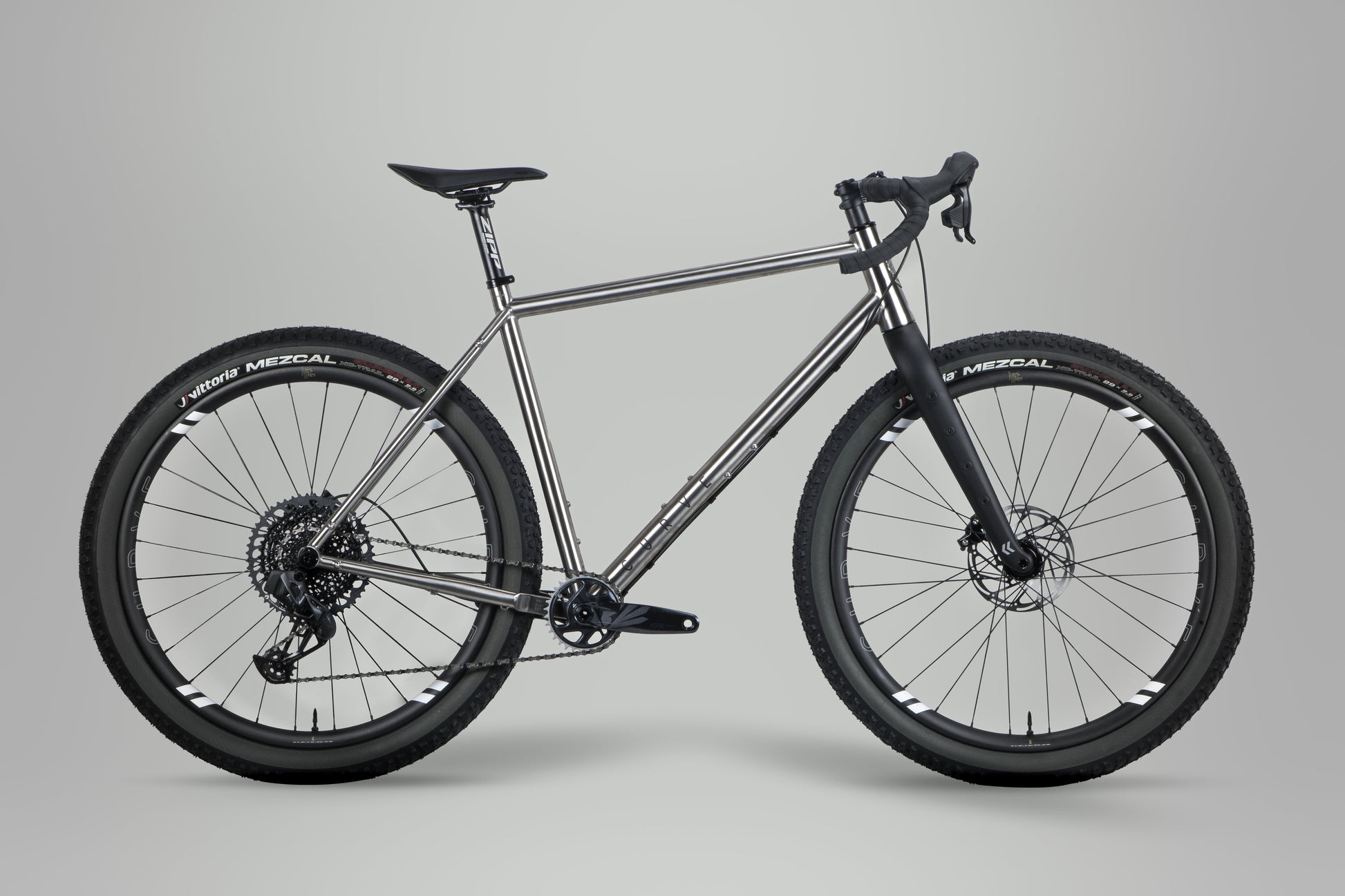

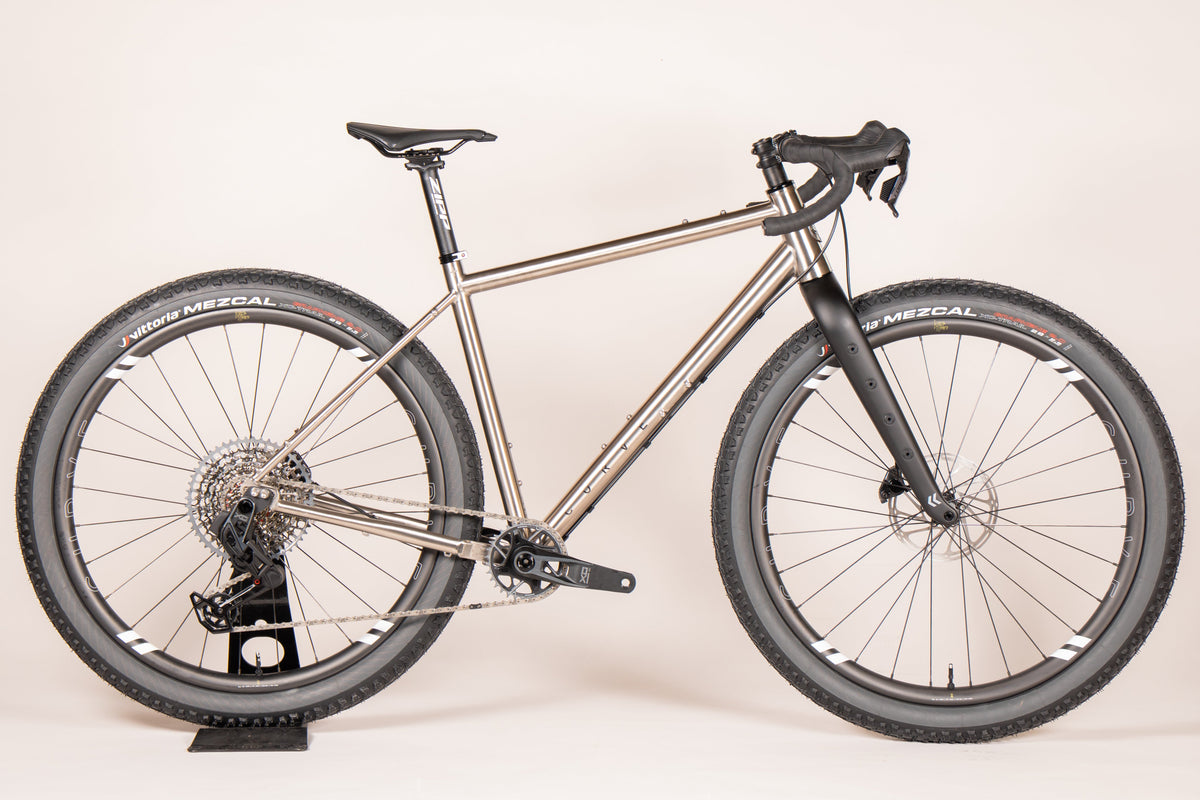

Curve GMX+ Titanium Complete

This item is available to order. Get in touch with Omafiets staff and we'll let you know the availability!

Overview:

The GMX+ is inspired by the intrepid Overlanders of the 1890s, who covered incredible distances without support across the harsh Australian outback. We have designed a bike that can do the same, but with much more ease using today's modern technology. The GMX+ is an adventure bike designed with wider tyre clearance thanks to our innovative carbon fork, ultra-wide drop bars for stability, and numerous mounting points for storage or water.

Tested in real-life conditions, the original GMX was designed for Race to the Rock, a harsh, remote desert race in Australia. With testing came improvements to the bike geometry and fork clearance, and so the GMX+ was born.

In recent years, the GMX+ has taken on some of the most challenging races worldwide, including Tour Divide, Silk Road Mountain Race, and Race to the Rock.

Specifications:

Frame:

- 3Al - 2.5V Aerospace Grade 9 titanium

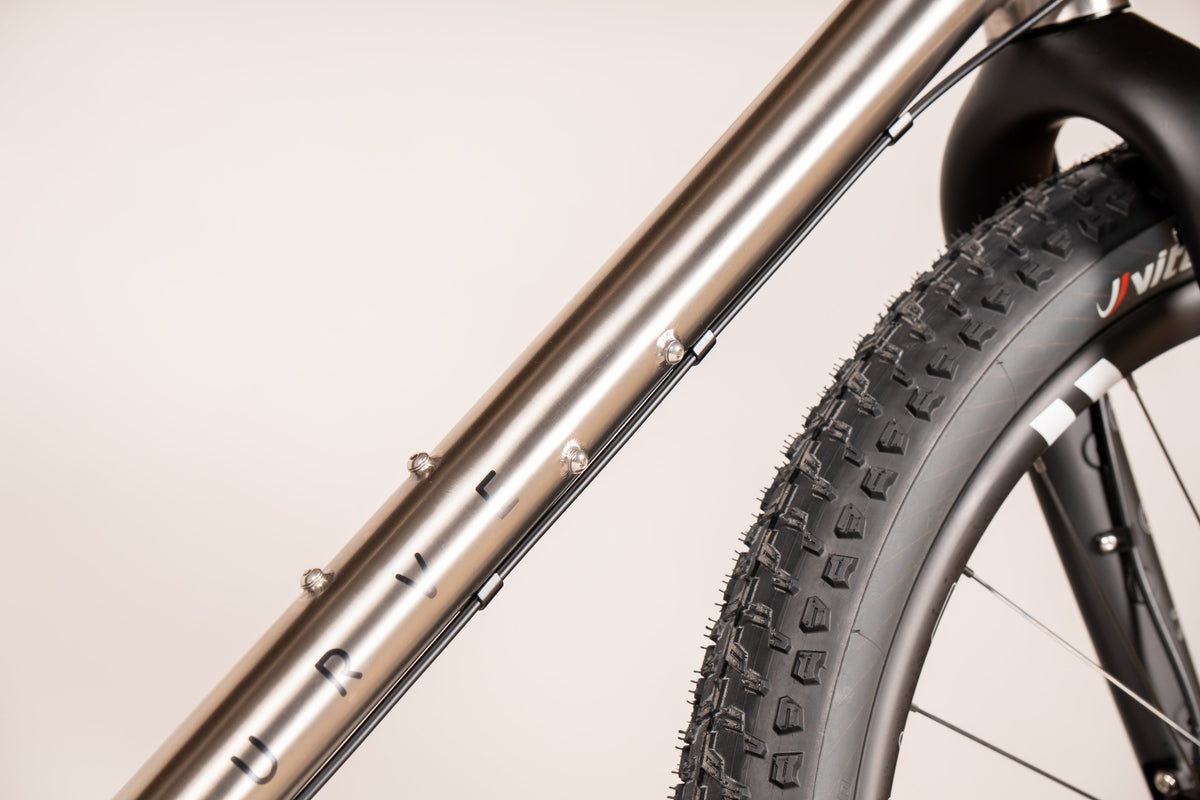

- 7x cage mounts

- Rear rack mounts

- Clearance max 3.0" tyres

- 1x chainring only (Max 38t)

- 12 x 148 mm axle spacing

- 160 mm direct post mount brake

- 31.6 mm seat post spacing

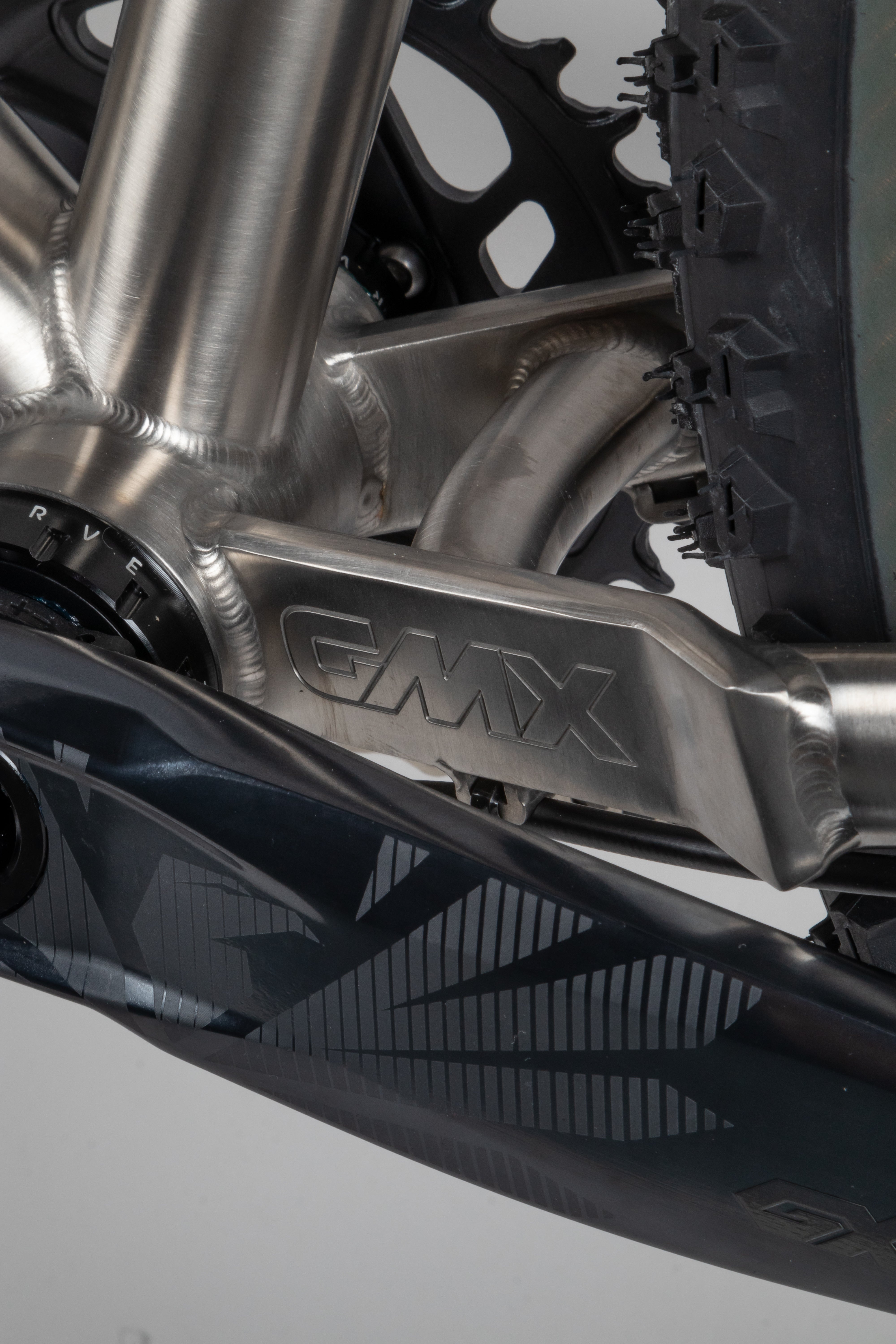

- T47 BB (73 mm)

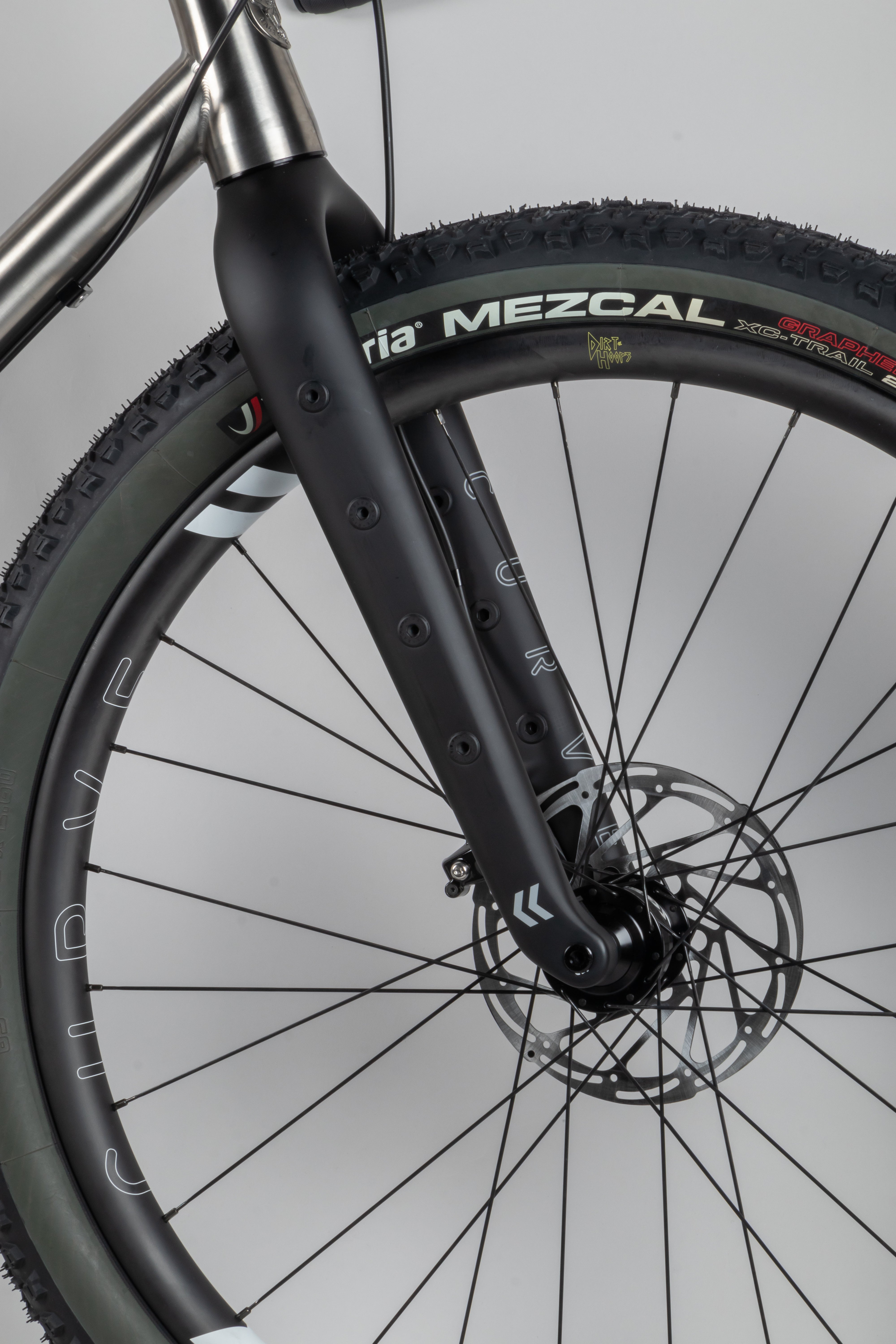

Seek 430 FM Fork:

- Carbon construction

- Weight: 646 gm

- Non-suspension corrected

- 8 x M5 mounts (4 per side)

- 430 mm axle to crown

- 55 mm offset

- 15 x 110 mm axle spacing

- 160/180 mm flat mount brake

- 1.5" tapered steerer

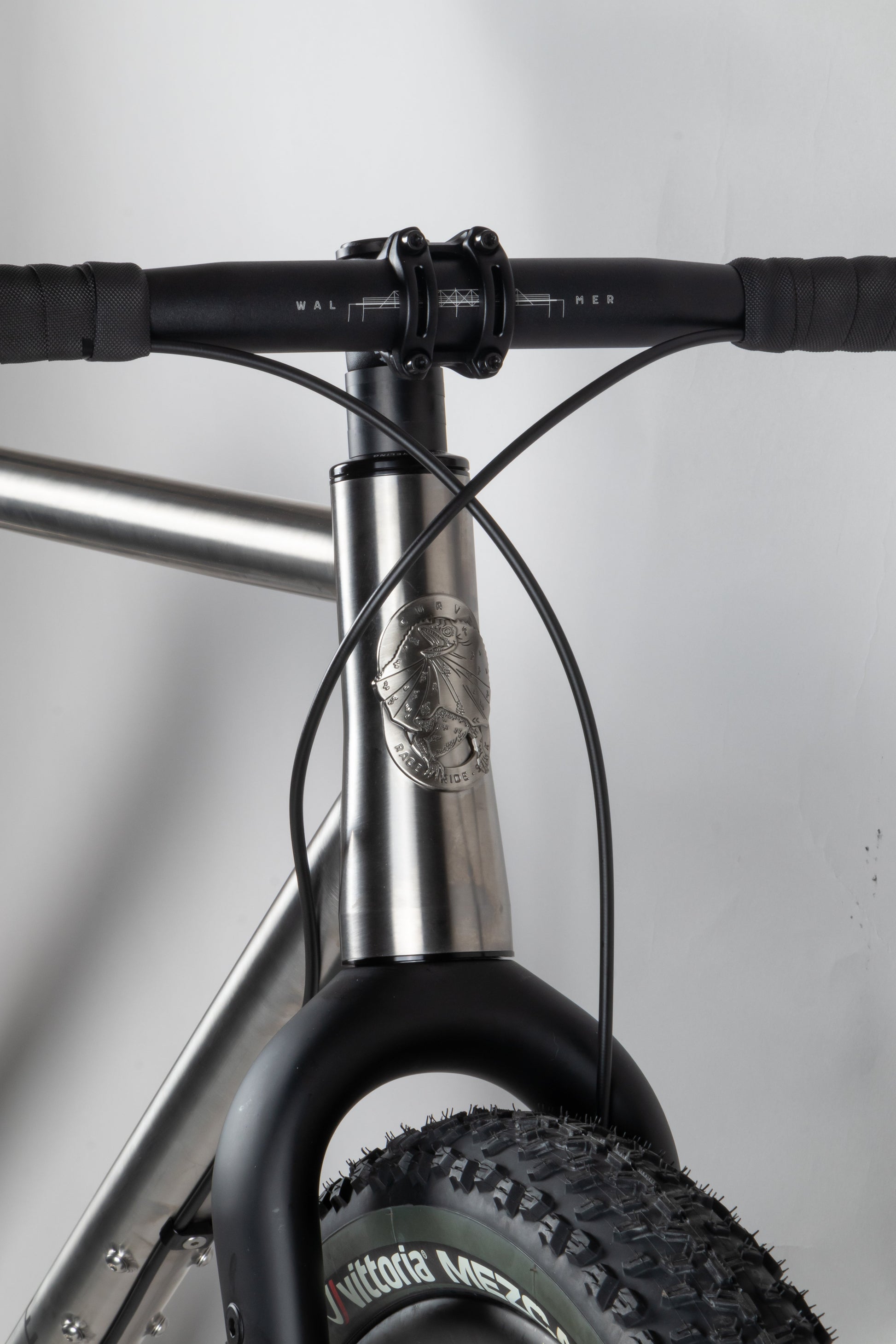

Curve Headset:

- 44/56 mm zero-stack

Other:

- 34.9 mm Curve Alloy Seat Clamp

- Curve Cocky Headbadge

- 15 x 110 mm front axle

- 12 x 148 mm rear axle

- Carbon expander

- Bolt-on cable guides

- Spare rear derailleur hanger

Groupset Options:

SRAM Rival-Eagle eTap AXS 1 x 12

Shifter/Levers - Rival D1 AXS eTap 1x12 sp - LHR / RHF
Brakes - Rival D1 HRD Flat Mount Disc // CL Rotors 180 mm front | 160 mm rear

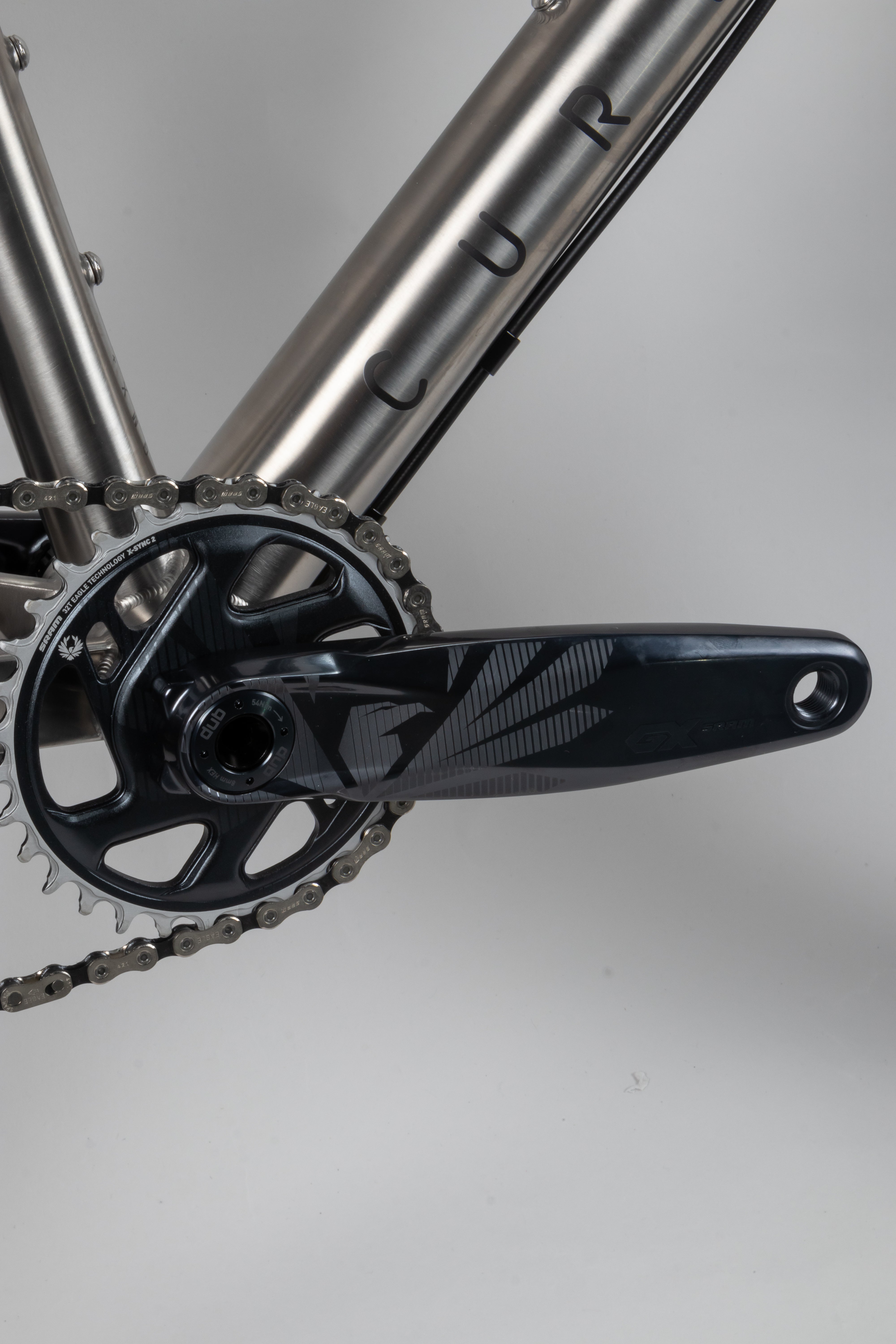

Crank - GX Eagle DUB - 30t | XS-SM: 165 mm | MD-XM: 170 mm | LG–XL: 175 mm
Bottom Bracket - Curve T47 DUB 73 mm

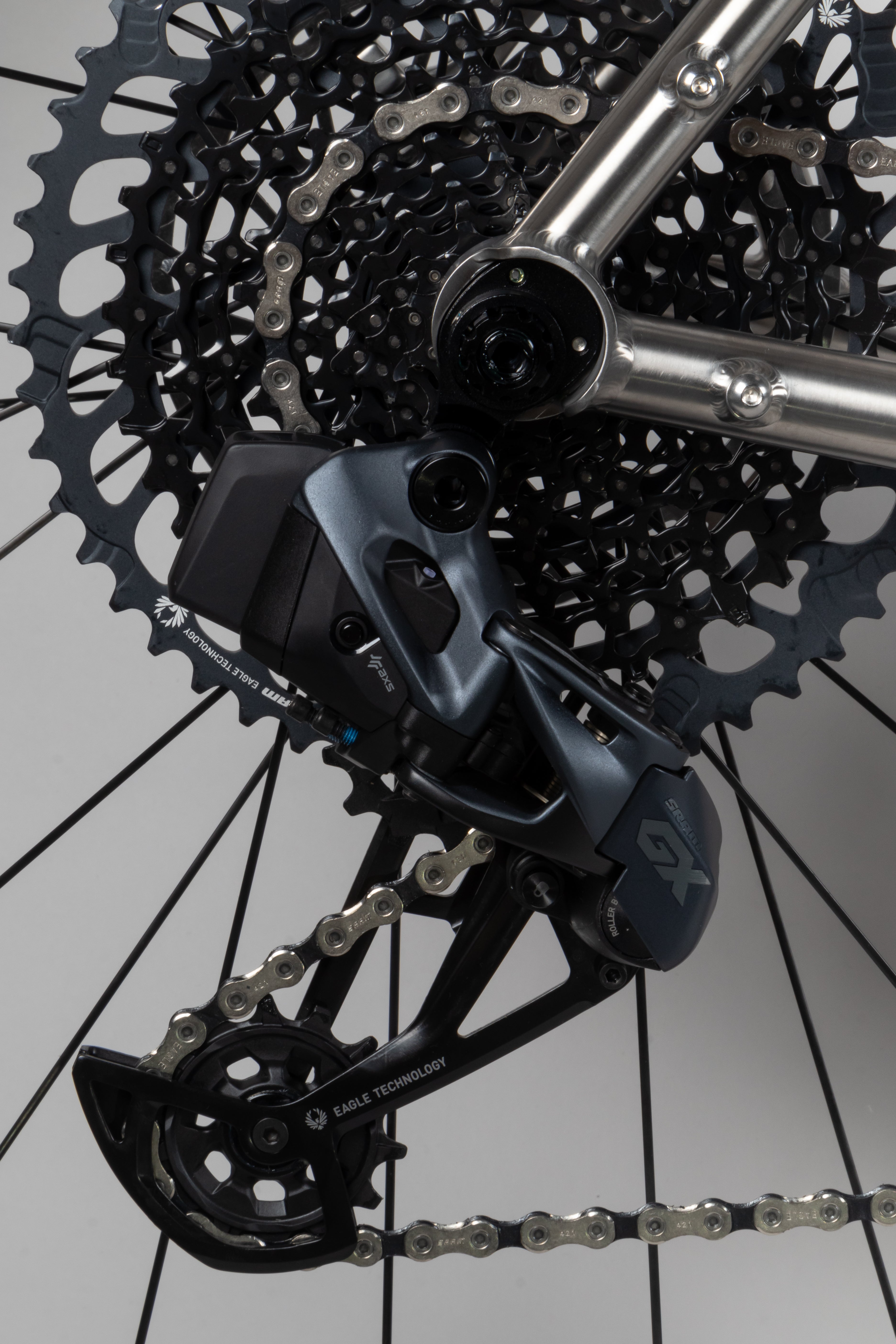

Rear Derailleur -  GX Eagle AXS Lunar 10-52t
Cassette - XG 1275 EAGLE 10-52t 12 sp
Chain - GX Eagle 12 sp

SRAM Force-Eagle eTap AXS 1 x 12
Shifter/Levers - Force D2 AXS eTap 1x12 sp - LHR / RHF
Brakes - Force D2 HRD Flat Mount Disc // CL Rotors 180 mm front | 160 mm rear
Crank - GX Eagle DUB - 30t | XS-SM: 165 mm | MD-XM: 170 mm | LG–XL: 175 mm
Bottom Bracket - Curve T47 DUB 73 mm

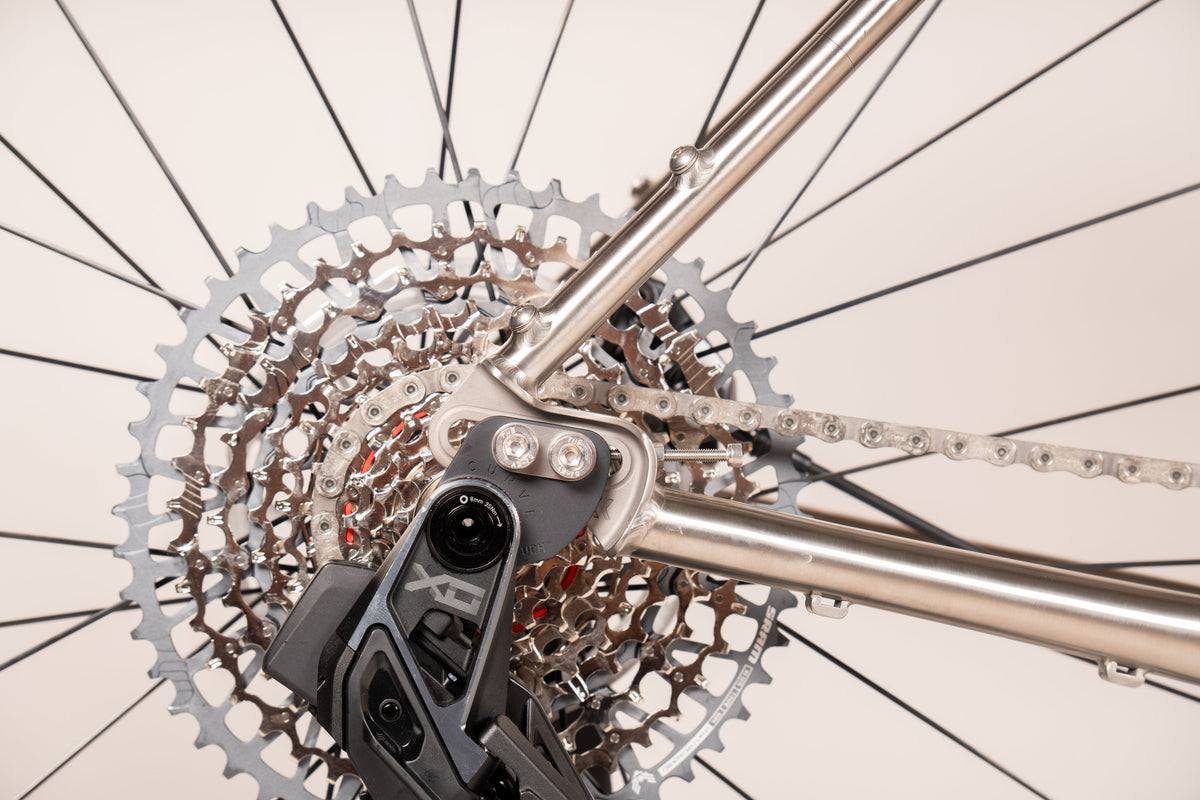

Rear Derailleur - X01 EAGLE AXS 10-52t
Cassette - XG 1275 EAGLE 10-52t 12 sp
Chain - GX Eagle 12 sp

Wheelset Options:

Dirt Hoops - 29” SM-XXL / 27.5” XXS-XS

Curve carbon off-road wheels:

- 30 mm internal, 40 mm external, 27 mm deep

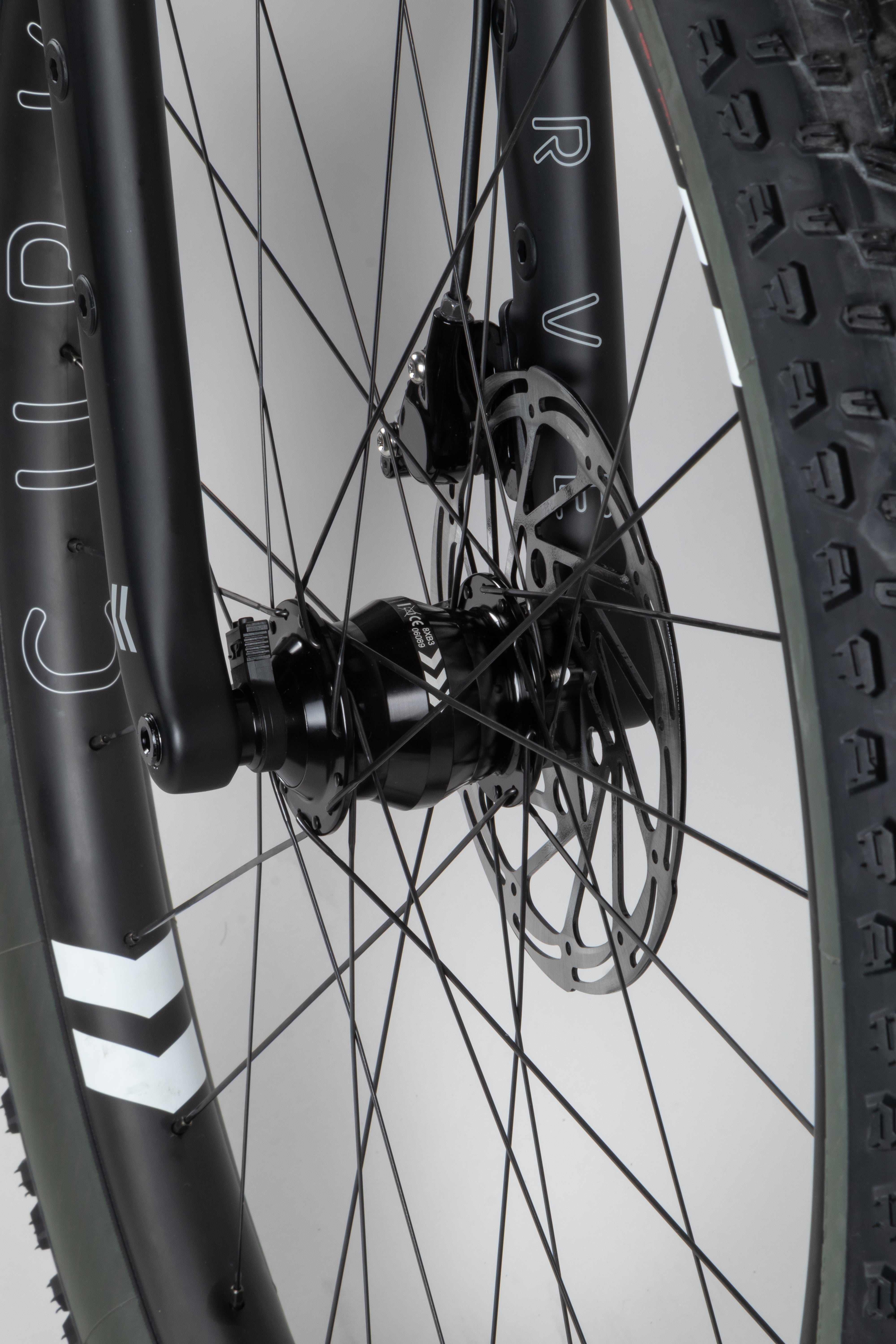

- Front Hub: SP Dynamo PL-8X 15x110 (6-Bolt) 28H

- Rear Hub: DT Swiss 350 28H

- Spokes & Nipples: Sapim CX Ray & Brass

Dirt Hoops Alloy - 29” SM-XXL / 27.5” XXS-XS

Curve alloy off-road wheels:

- 30 internal x 35 external x 19 deep

- Front Hub: SP Dynamo PL-8X 15x110 (6-Bolt) 28H

- Rear Hub: DT Swiss 350 28H

- Spokes & Nipples: Sapim Race & Brass

Finishing Kit:

Bars - Curve Walmer Bar

XXS-XS: 46 | SM: 50 | MD-XM: 55 | L–XXL: 60

Stem - Truvativ Atmos 60 mm

Seatpost - Zipp SC 0 Setback 31.6 mm

Saddle - Fi'zi:k Vento Argo

Tyres - Vittoria Mezcal III 29 x 2.6 / Ranger 27.5 x 3.0 TCS

Bar Tape - Curve black anti-shock

Please Note: Spec subject to change according to availability
