Description

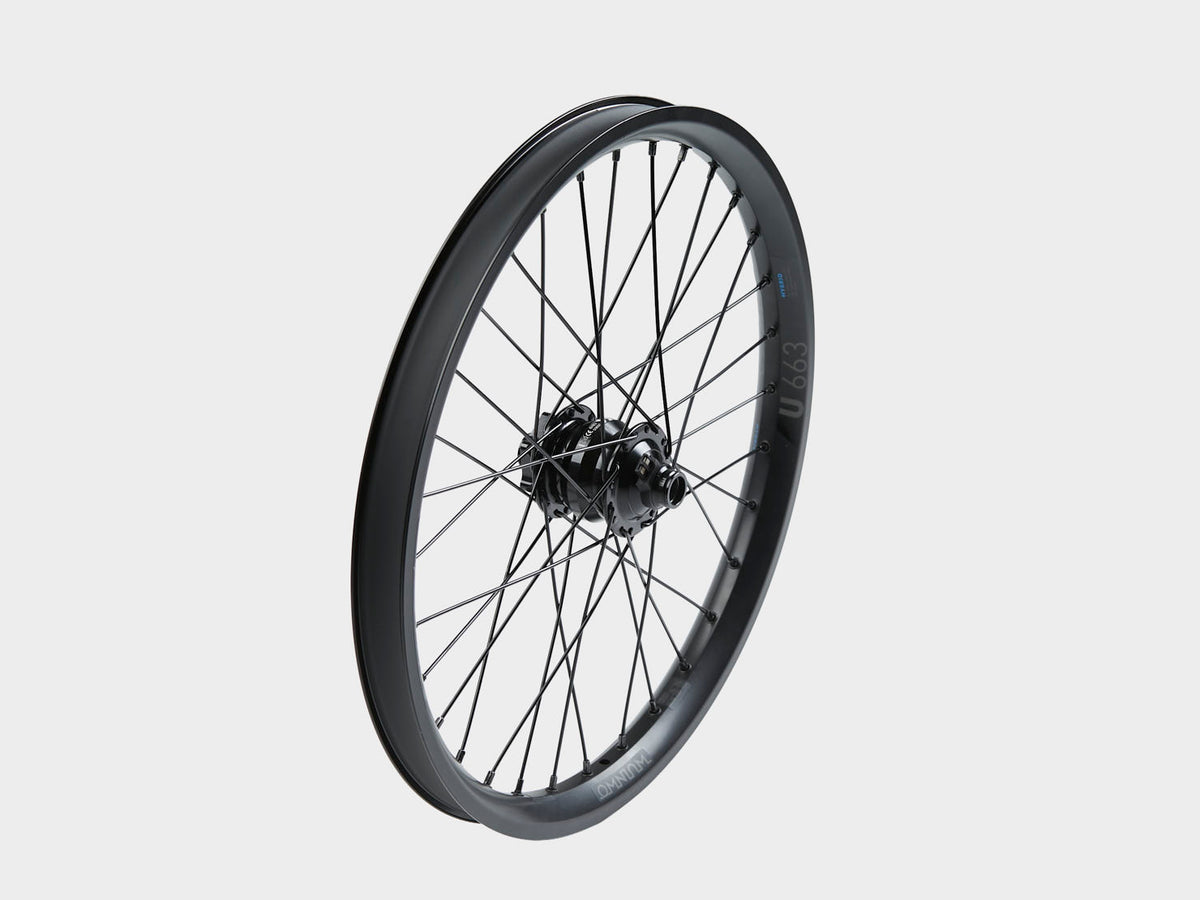

Omnium Dynamo Front Wheel – SP PD-6 Hub x DT Swiss for Omnium Rim
The Omnium Dynamo Front Wheel, combines the ultra-efficient Shutter Precision PD-6 dynamo hub with our custom Omnium by DT Swiss rim. Purpose-built for utility riders who demand performance, this wheel is your solution for self-powered power genorater.
Whether you’re commuting through winter darkness or running lights for long-distance cargo hauls, the PD-6 hub delivers industry-leading efficiency and low-drag performance. Paired with our proven U663 aluminum rim—designed with strength, width, and load-bearing in mind—you get a wheel ready to keep you visible, reliable, and rolling no the time of day.
Designed for Omnium models like the Mini, Mini-Max, and Cargo, this wheel is part of our commitment to integrating real-world utility.
Key Features:
- SP PD-6 Hub: One of the most efficient dynamo hubs on the market—low resistance, high output.
- Cargo-Grade Rim: DT Swiss for Omnium U663 aluminum rim, 30mm inner width, tubeless compatible.
- Strong & Stable: 32-hole lacing with 13G stainless steel spokes for maximum durability.
- Disc Brake Ready: 6-bolt rotor interface, built for stopping power under load.
- Thru Axle Fit: 15mm axle system, designed for modern cargo bike standards.
- Built for Night and Day: Seamlessly power your front light, rear light, or USB charging systems.
Specs
| Rear Wheel | Front Wheel | Dynamo Wheel | |
| Rim Weight | 760g | 500g | 500g |
| Wheel Weight | 1414g | 880g | 1150g |
| Max Carrying Capacity | 180kg | 180kg | 180kg |
| Rim Material | Aluminum | Aluminum | Aluminum |
| Rim Model | U663 | U663 | U663 |
| Tire Interface | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC |
| Valve Hole | Presta | Presta | Presta |
| Rim Diameter | 29″ / 700C | 20″ / 406 | 20″ / 406 |
| Rim ERD | 599mm | 383mm | 383mm |
| Rim Hight | 22mm | 22mm | 22mm |
| Inner Width | 30mm | 30mm | 30mm |
| Outer Width | 35mm | 35mm | 35mm |
| Holes | 32 | 32 | 32 |
| Hub Type | 370 | 370 | SP PD-6 |
| Axle System | 12mm Thru Axle | 15mm Thru Axle | 15mm Thru Axle |
| Spacing | 142mm | 100mm | 100mm |
| Brake Mount | 6-Bolt | 6-Bolt | 6-Bolt |
| Cassette Interface | Shimano Road (HG) | – | – |
| Freehub Body | Shim. RD. 11SP Forged (ASF11) | – | – |
| Freehub System | Ratchet LN 18 | – | – |
| Spokes | Alpine II Spokes 2.34 / 291 & 289 mm | Alpine II Spokes 2.34 / 174mm & 176mm | 13 Gauge Stainless |
| Nipples | DT Brass Standard Pro Head 2.0 x 14mm | DT Brass Standard Pro Head 2.0 x 14mm | Brass nipples 2.0 x 13 |
| Compatability | WiFi, V3 & V3.1 | WiFi, V3 & V3.1 | WiFi, V3 & V3.1 |
