Omnium Mini-Max Wifi Frameset Matt Black Small

We found a Single V2 Wifi frameset in the warehouse, gets all the new big tire V3 upgrades but with a simpler non sliding dropout. Also very nice Matte Black Paint ! Size Small Only !

Omnium’s original cargo , in its modern WiFi form. Huge carrying capability without affecting steering. Lightweight steel with big tyre clearance and thru axle dropouts. In stock NOW.

‘The new Cargo WiFi has been optimized for 55mm (2.15″) tires front and rear. The list of benefits tied to bigger tires is long, but here’s a few we find important. High volume tires run at lower tire pressure, creating a significant layer of suspension between you and the ground. This results in far more comfort and control while riding on all surfaces, making easy work of rough roads, gravel, and cobblestones. The fast semi-slick tire tread design results in a minor rolling speed penalty, but more importantly increases grip, stability, and also reduces the risk of punctures.

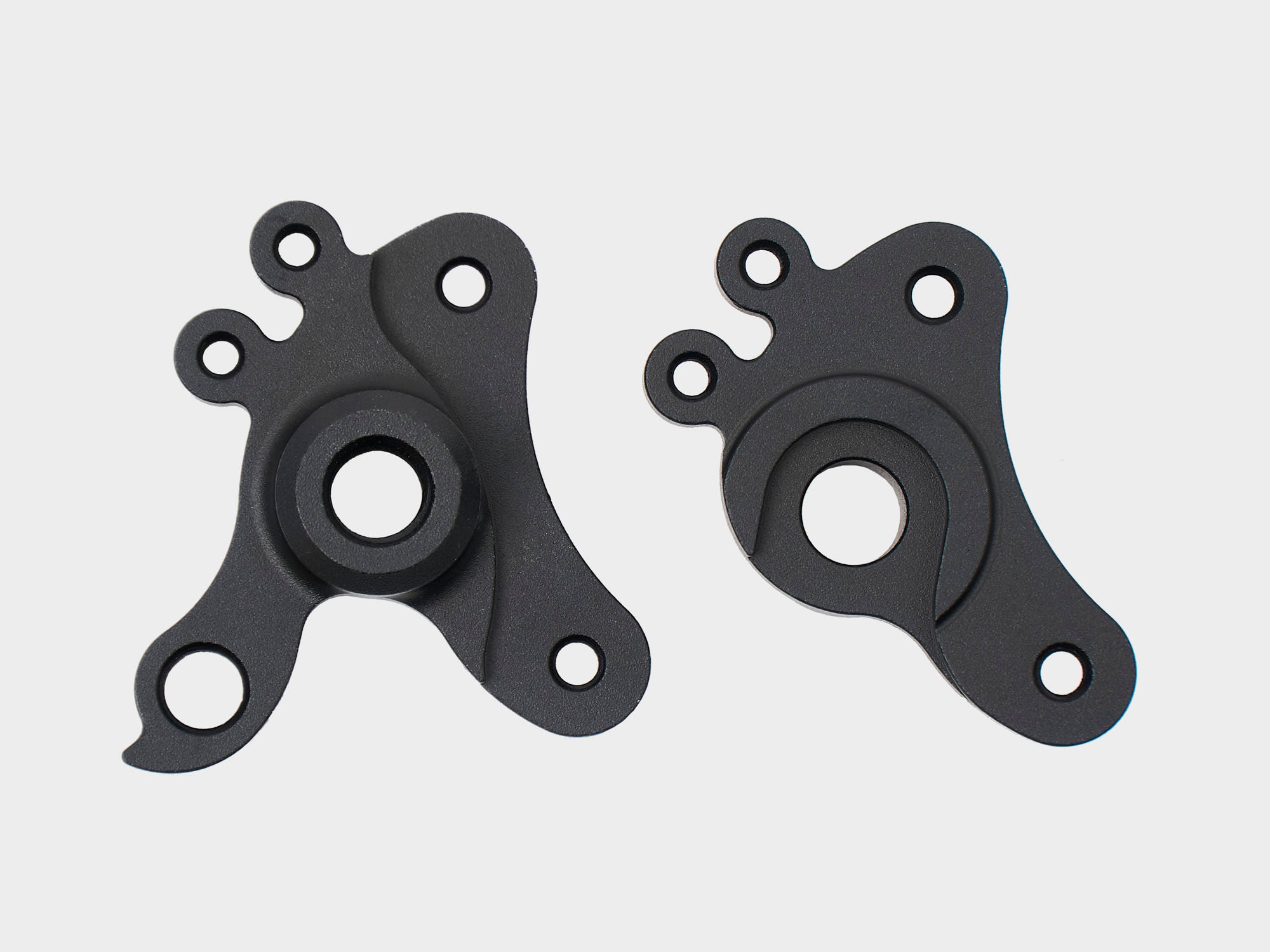

The frame and fork have also been updated to take 15 x 100mm front and 12 x 142mm rear thru axles. Although thru axles were first seen on downhill mountain bikes in the late 90’s, most disc brake bikes these days use them. They make perfect sense on our cargo bikes. The axle bolts through a closed hole in the frame and fork, then through the hub, and threads directly into the dropout on the other side. Most importantly, this system increases stiffness, rigidity under braking and load, and reduces the risk of incorrect installation and disk brake rub.’

FRAME SPECIFICATIONS

Double-Butted Chromoly Steel Frame
Frame + Fork + Steering Rod: TBD
Standard Rack Weight: 1320g +/-
Rack dimensions: 83cm x 50cm
Seat post diameter: 31.6 mm
Seat post clamp size: 34.0 mm
Rear Wheel: 622, 12 x 142mm spacing, disc only
Front Wheel: 406, 15 x 100 mm spacing, disc only
Tyre clearance, front: 55mm with mudguards
Tyre clearance, rear: 55mm with mudguards
Fork headset: 1 1/8″ Threaded Integrated with locking cap
Steerer headset: 1 1/8″ Ahead
Bottom Bracket: BSA 68mm
Q-Factor/Stance: 145mm
Gears: For 1x rear derailleur gear system
Recommended maximum loading weight including rider: 175 kg
